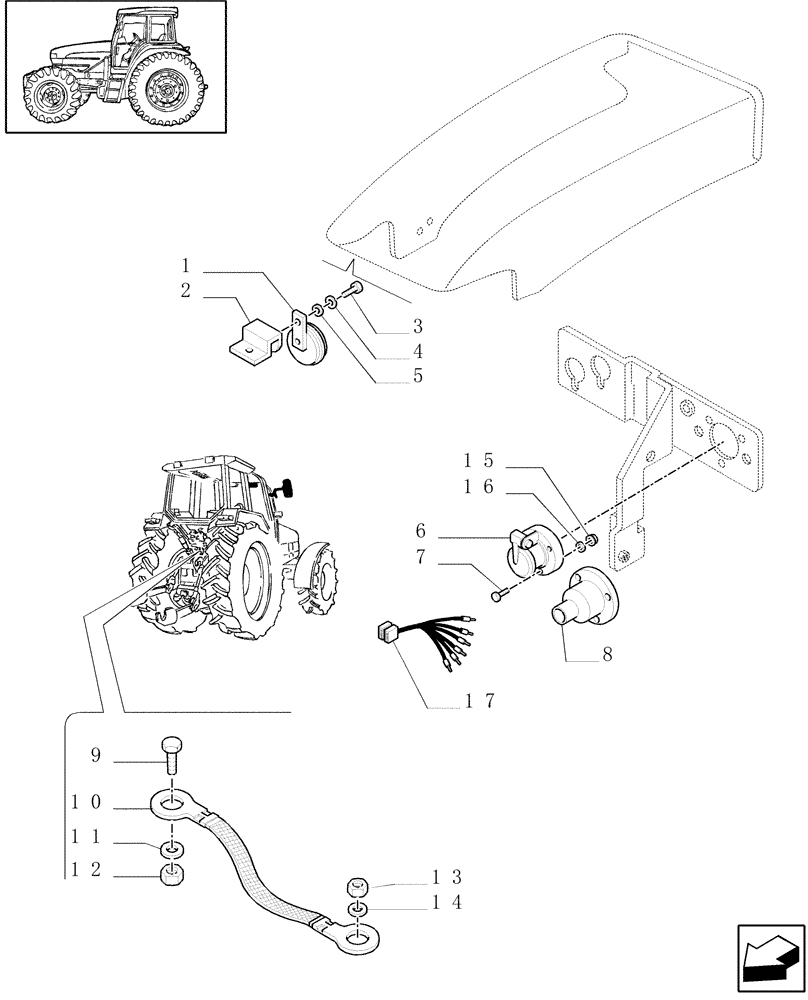

Запчасти Case IH MXM120 (1.75.1) - ELECTRIC SYSTEM, HORN & HORN MOUNTING (06) - ELECTRICAL SYSTEMS

1

82000694

HORN

, Serial Range: -C5428

1шт.

1

87551747

HORN,12V

, Start Serial: D5428

1шт.

2

82001658

BRACKET

1шт.

3

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

4

10516474

LOCK WASHER

1шт.

5

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

6

83959716

POWER SOCKET,7 Pins

1шт.

The bracket in ghost in front of this receptacle is on figure 1.82.7(01)

1шт.

7

82021071

SCREW,Phillips Drive, Pan HD, M5 x 35mm

3шт.

8

82013268

BOOT

1шт.

9

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

1шт.

10

82024742

GROUND CABLE

Ground

1шт.

11

14499521

WASHER,10.5mm ID x 18mm OD x 2mm Thk

1шт.

12

11701721

NUT,M10, Cl 10

1шт.

13

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

1шт.

14

12644904

WASHER

1шт.

15

15896421

NUT,M5, Cl 10

3шт.

16

85700057

LOCK WASHER,Serr, M5

3шт.

17

82023144

WIRE HARNESS

1шт.
