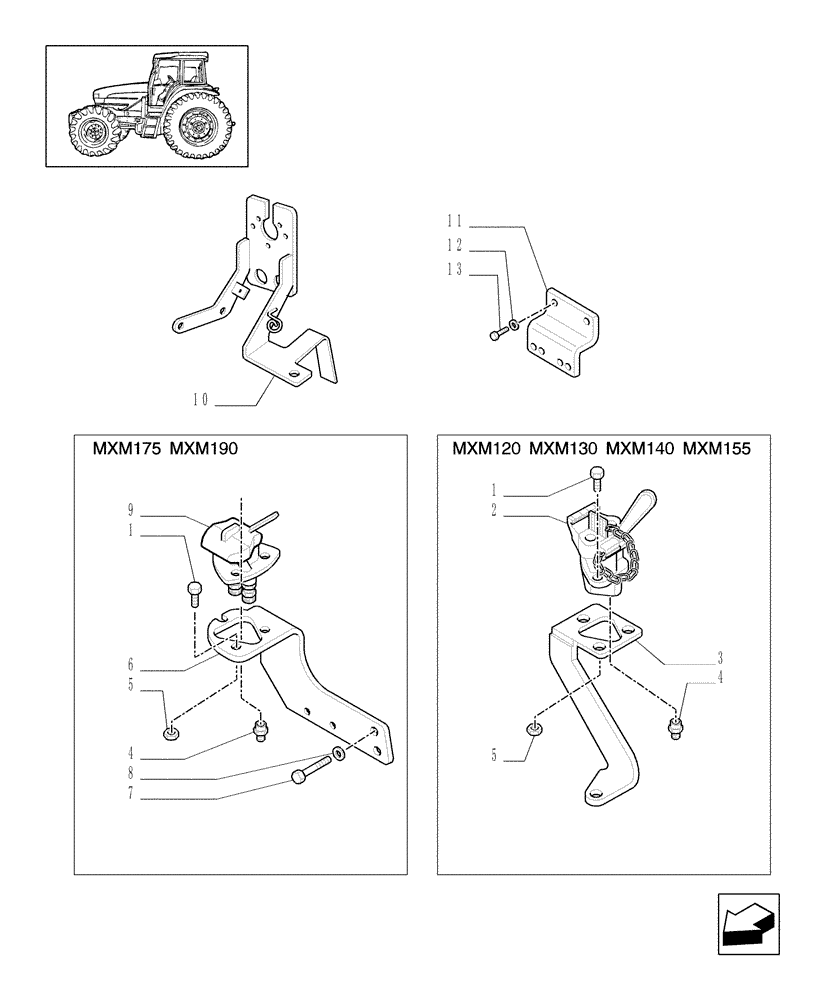

Запчасти Case IH MXM120 (1.68.6/03[12]) - (VAR.385/2) TRAILER AIR BRAKE ITALY - BRACKETS - C5766 (05) - REAR AXLE

1

11106424

SCREW,Hex, M10 x 30mm, Cl 8.8, Full Thd

3шт.

2

82020681

COUPLING

1шт.

3

82019878

BRACKET

1шт.

4

82017722

ADAPTER

2шт.

5

11701721

NUT,M10, Cl 10

3шт.

6

82029900

BRACKET

1шт.

7

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

8

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

9

82030230

COUPLING

Incl. 4

1шт.

10

87308094

BRACKET

1шт.

11

82030587

BRACKET

1шт.

12

14496404

WASHER,M6 x 12 x 2 Thk

2шт.

13

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.
