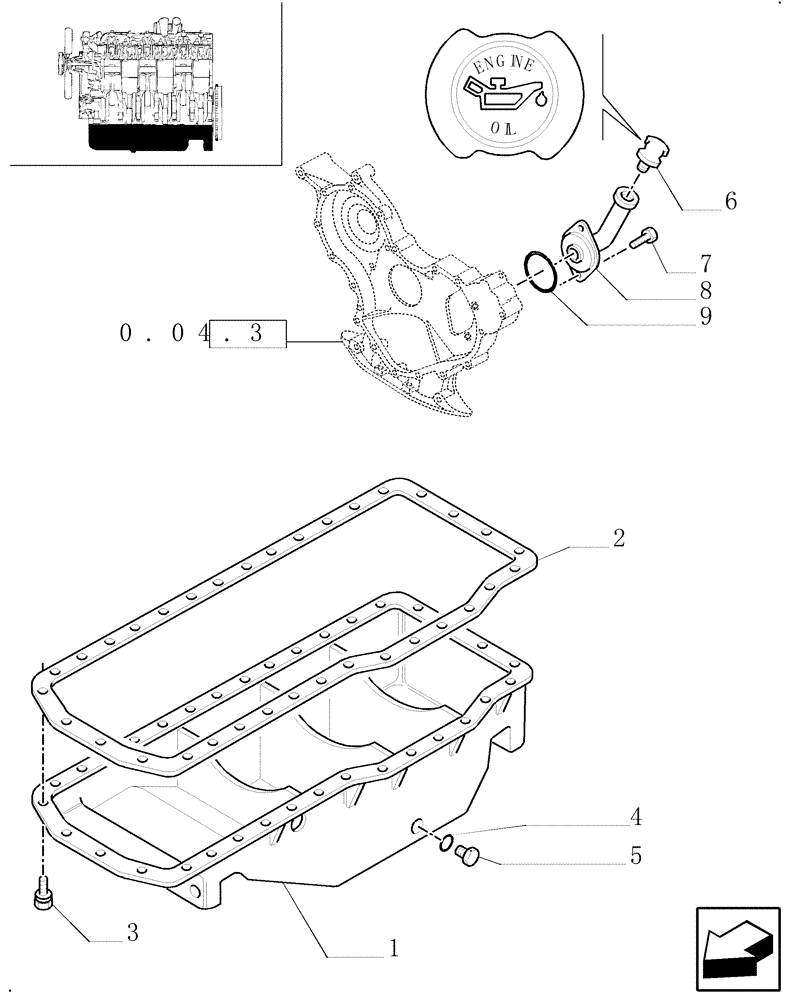

Запчасти Case IH MXM120 (0.04.2) - OIL SUMP & RELATED PARTS (01) - ENGINE

1

87802502

ENGINE OIL PAN

1шт.

2

87800945

OIL PAN GASKET SET

1шт.

3

87840565

FLANGE BOLT,Hex, 3/8" - 16 x 1.50", Gr 5

3/8"-16 x 1-1/2"

32шт.

4

81822148

GASKET

1шт.

5

81822147

PLUG,3/4" - 16

1шт.

6

87761857

COVER

1шт.

7

83925618

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

HS, G8, 3/8"-16 x 5/8"

2шт.

8

87802571

TUBE,150, 94 mm L

1шт.

9

80510137

O-RING

3.2.4" ID x .139" Thk

1шт.
