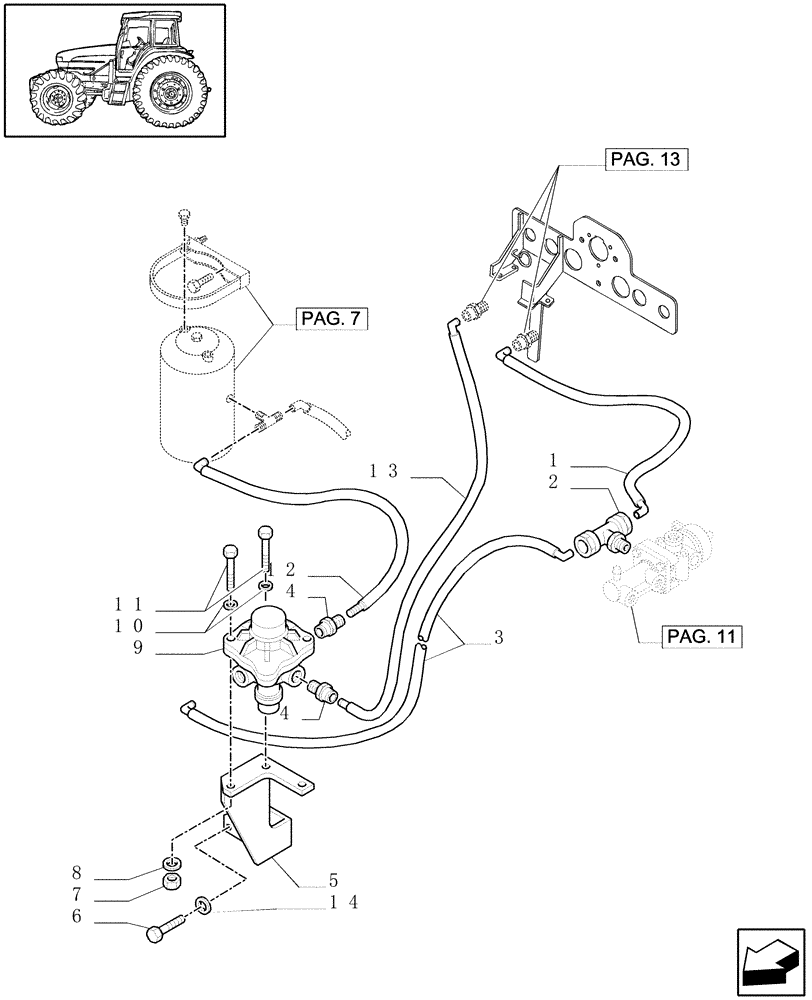

Запчасти Case IH MXM120 (1.68.6/01[09]) - (VAR.385) TRAILER AIR BRAKE GERMANY - TRAILER BRAKE CONTROL VALVE AND PIPES (05) - REAR AXLE

1

82019633

TUBE,10 mm OD, 890 mm Length

Yellow

1шт.

2

82006829

TEE

1шт.

3

82019631

TUBE,10 mm OD, 1050 mm Length

1шт.

4

82017722

ADAPTER

2шт.

5

82020424

BRACKET

1шт.

6

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

2шт.

7

11701721

NUT,M10, Cl 10

3шт.

8

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

9

82006250

CONTROL VALVE

1шт.

10

10516674

LOCK WASHER,M8

2шт.

11

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

12

82014915

TUBE,10 mm OD, 340 mm Length

1шт.

13

82018668

TUBE

Black

1шт.

14

14496604

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.
