(1.68.6/01[02]) - (VAR.385) TRAILER AIR BRAKE GERMANY - PULLEYS AND BELT

Запчасти Case IH MXM120 (1.68.6/01[02]) - (VAR.385) TRAILER AIR BRAKE GERMANY - PULLEYS AND BELT (05) - REAR AXLE

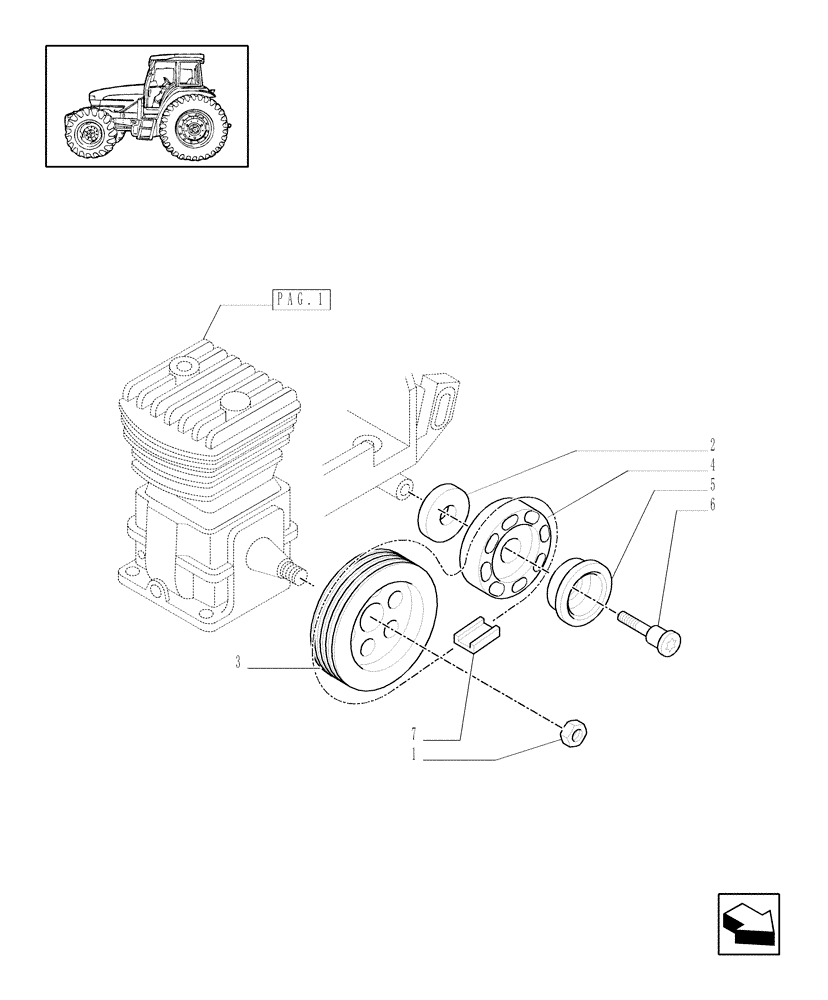

Схема запчастей Case IH MXM120 - (1.68.6/01[02]) - (VAR.385) TRAILER AIR BRAKE GERMANY - PULLEYS AND BELT (05) - REAR AXLE
2
6
pag.1
3
1
7
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

14088711

SQUARE NUT,Square, M12 x 1.25

M12 x 1.25

1шт.

2

82024061

SPACER,12.4mm ID x 33.5mm OD x 7.9mm L

1шт.

3

82020926

PULLEY,126mm OD

1шт.

4

82024062

IDLER,74mm OD

1шт.

5

87840420

COVER

Dust, Outer

1шт.

6

82024060

BOLT,M12 x 1.25 x 60mm, Cl 10.9

M12 x 1.25 x 60

1шт.

7

82021010

BELT

Air Compressor

1шт.
