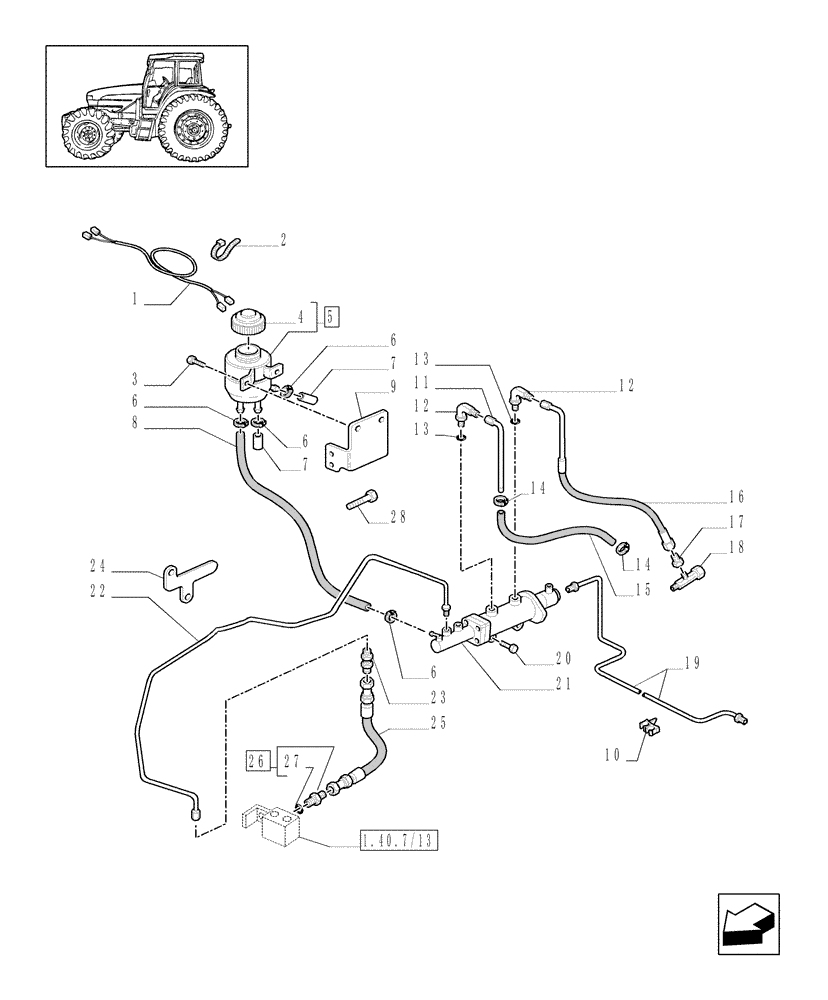

Запчасти Case IH MXM120 (1.68.5/03[02]) - (VAR.463/1) 4WD FRONT AXLE WITH SUSPENSIONS, BRAKE, TERRALOCK, FPS - BRAKE PIPES (05) - REAR AXLE

1

82015485

ELECTRIC CABLE

1шт.

2

529070

CABLE TIE,368.3mm L

CABLE STRAP

6шт.

3

82880748

SCREW,Pozidrive, Pan HD, M6 x 2 x 14mm, Cl 4.8

Pan Hd, M6 x 2 x 14

2шт.

4

82007886

FILLER CAP

1шт.

5

82007885

BRAKE FLUID TANK,0.25L

1шт.

6

81864605

HOSE CLAMP,11.5mm - 14.75mm

1шт.

7

81871497

COVER

2шт.

8

81871879

HOSE

1шт.

9

82018586

BRACKET

1шт.

10

81863745

CLIP

1шт.

11

82014177

BRAKE LINE

1шт.

12

5158418

ELBOW

2шт.

13

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

14

82039341

CLAMP,12mm - 22mm

4шт.

15

82016255

HYDRAULIC HOSE,10.00 mm ID x 540.00 mm

1шт.

16

82014176

FLEXIBLE HOSE

1шт.

17

5155718

ADAPTER

1шт.

18

5158234

TEE

1шт.

19

82016066

BRAKE LINE

1шт.

20

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

21

82014086

HYDRAULIC VALVE,30mm Stroke

1шт.

22

82018643

BRAKE LINE

1шт.

23

82023790

ADAPTER

1шт.

24

82026165

BRACKET

1шт.

25

82023776

FLEXIBLE HOSE

1шт.

26

82015298

HYD CONNECTOR,1/2"-20 - M18 x 1.5

1шт.

27

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

15.7 x 20.9 x 1.5

1шт.

28

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.
