Запчасти Case IH MXM120 (1.48.1/11) - (VAR.437/3) 98" LONG AXLE FOR STEEL DISK (05) - REAR AXLE

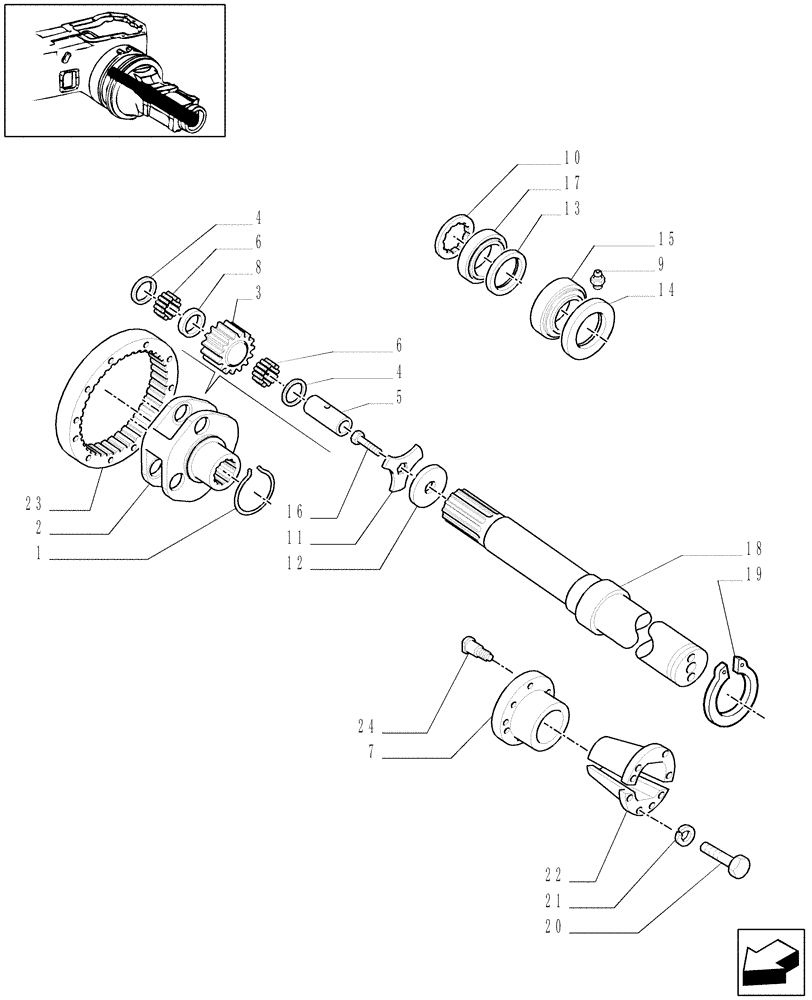

Схема запчастей Case IH MXM120 - (1.48.1/11) - (VAR.437/3) 98" LONG AXLE FOR STEEL DISK (05) - REAR AXLE
23
1
20
21
17
18
4
10
15
4
24
12
7
3
8
14
6
16
11
6
5
13
2
9
19
22

Артикул

Название

Примечание

Количество

1

4998880

SNAP RING,4mm Thk, Ext

2шт.

2

5164689

SUPPORT

2шт.

3

5164672

DRIVEN GEAR

6шт.

4

5145983

THRUST WASHER,53.6mm ID x 84mm OD x 1mm Thk

12шт.

5

5164691

PIN,53.5mm OD x 106.5mm L

6шт.

6

5152128

ROLLER BEARING,53.5 mm ID x 67.5 mm OD x 47 mm

6шт.

7

47126144

HUB

Incl. 24

2шт.

8

5102468

SPACER,56mm ID x 67.4mm OD x 5mm L

6шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

5152126

THRUST WASHER,64mm ID x 70.5mm OD x 5mm Thk

2шт.

11

5146156

LOCKING PLATE

2шт.

12

4996965

DISC,18.5mm ID x 82mm OD x 8mm Thk

2шт.

13

5152364

OIL SEAL,75mm ID x 95mm OD x 10mm Thk

2шт.

14

5199548

OIL SEAL,95.00mm ID x 130.00mm OD x 16.00mm

2шт.

15

24903470

BEARING ASSY,70mm ID x 110mm OD x 25mm W

70 x 110 x 25

2шт.

16

15984331

BOLT,Hex, M18 x 1.5 x 50mm, Cl 10.9, Full Thd

2шт.

17

24903490

BEARING ASSY,80mm ID x 125mm OD x 29mm W

80 x 125 x 29

2шт.

18

5198603

SHAFT

98"

2шт.

19

11071376

SNAP RING,M90, Ext

2шт.

20

11125321

BOLT,Hex, M20 x 80, 8.8

12шт.

21

87306816

CONE WASHER,20.00mm ID x 36.00mm OD x 4.50mm

20 x 36 x 4.5

12шт.

22

5198605

BUSHING

2шт.

23

5152030

RING GEAR

2шт.

24

87651027

STUD,M18 x 1.5 x 85mm, Cl 10.9

8шт.

Выбрано товаров: 24
