Запчасти Case IH MXM120 (1.48.1/02) - (VAR.431) 112" LONG AXLE FOR CAST DISC (05) - REAR AXLE

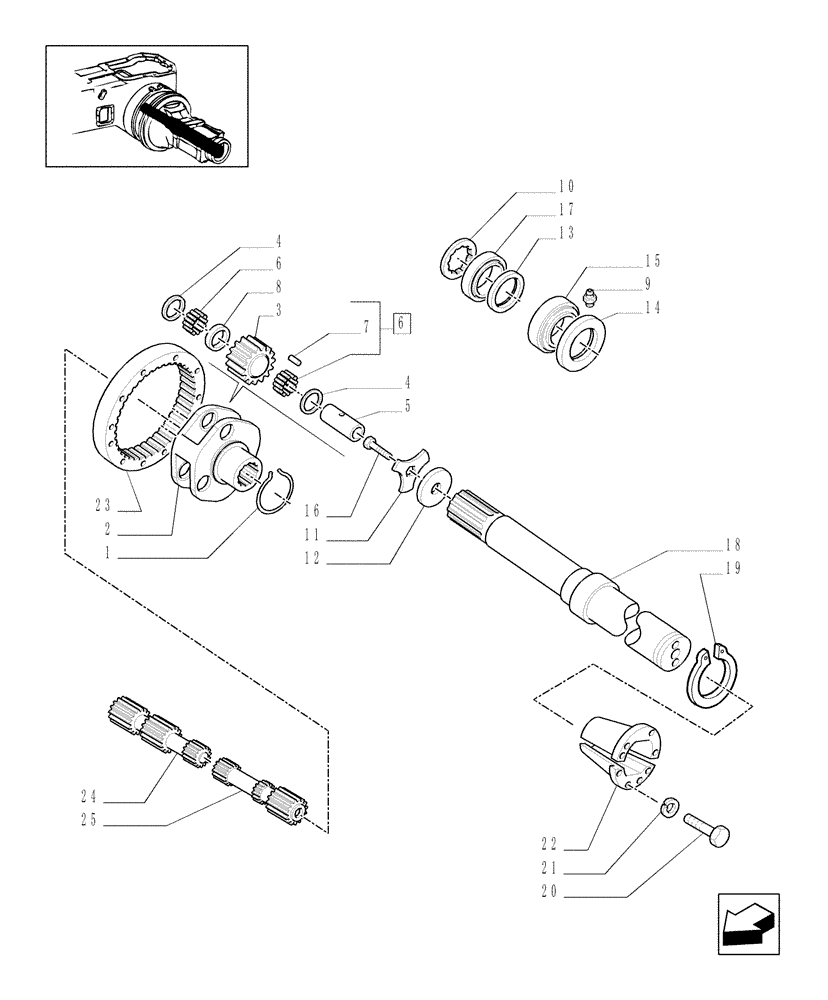

Схема запчастей Case IH MXM120 - (1.48.1/02) - (VAR.431) 112" LONG AXLE FOR CAST DISC (05) - REAR AXLE
22
18
6
25
8
1
20
2
3
13
14
23
21
16
5
10
11
7
24
6
19
12
4
17
15
4
9

Артикул

Название

Примечание

Количество

1

4998880

SNAP RING,4mm Thk, Ext

2шт.

2

5162271

SUPPORT

2шт.

3

5162282

DRIVEN GEAR,25T

6шт.

4

5145983

THRUST WASHER,53.6mm ID x 84mm OD x 1mm Thk

12шт.

5

5162172

PIN,53.5mm OD x 129mm L

6шт.

6

5102466

NEEDLE BEARING,53.5mm ID x 67.5mm OD x 32mm W

6шт.

7

5116733

NEEDLE ROLLER,62.4mm ID x 76.4mm OD x 0mm W

54шт.

8

5102468

SPACER,56mm ID x 67.4mm OD x 5mm L

6шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

5121648

THRUST WASHER,73mm ID x 106mm OD x 5mm Thk

2шт.

11

5146156

LOCKING PLATE

2шт.

12

5162141

DISC,18.5mm ID x 87.5mm OD x 8mm Thk

2шт.

13

5162403

SEAL,82mm ID x 105mm OD x 12mm Thk

2шт.

14

5199548

OIL SEAL,95.00mm ID x 130.00mm OD x 16.00mm

2шт.

15

24903500

TAPERED BEARING,85mm ID x 130mm OD x 29mm W

85 x 130 x 29

2шт.

16

15984331

BOLT,Hex, M18 x 1.5 x 50mm, Cl 10.9, Full Thd

2шт.

17

24903490

BEARING ASSY,80mm ID x 125mm OD x 29mm W

80 x 125 x 29

2шт.

18

5198601

SHAFT,27T, 1083mm L

112"

2шт.

19

11071376

SNAP RING,M90, Ext

2шт.

20

11125321

BOLT,Hex, M20 x 80, 8.8

12шт.

21

87306816

CONE WASHER,20.00mm ID x 36.00mm OD x 4.50mm

20 x 36 x 4.5

12шт.

22

5198605

BUSHING

2шт.

23

5162266

RING GEAR,63T, 63mm L

2шт.

24

5170962

HALF SHAFT,294.00mm

RH

1шт.

L= 294 mm

1шт.

25

5170963

HALF SHAFT,312.00mm

LH

1шт.

L= 312 mm

1шт.

Выбрано товаров: 27
