Запчасти Case IH MXM120 (1.48.1[01]) - FINAL DRIVE, GEARS AND SHAFTS (05) - REAR AXLE

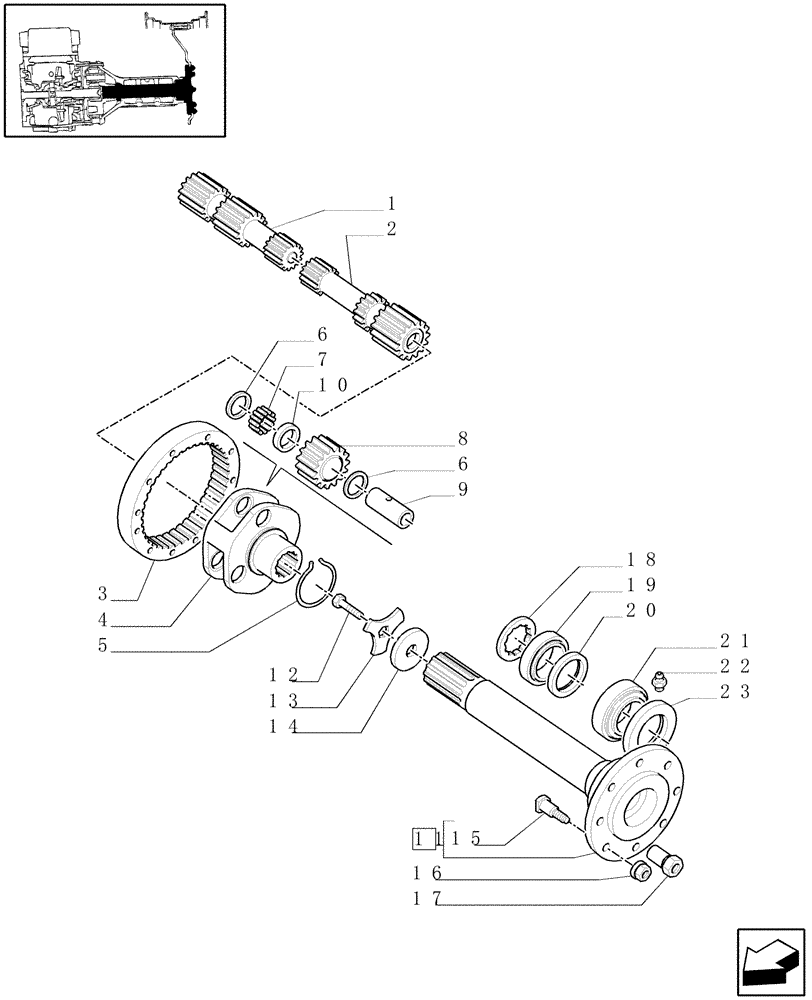

Схема запчастей Case IH MXM120 - (1.48.1[01]) - FINAL DRIVE, GEARS AND SHAFTS (05) - REAR AXLE
2
20
13
18
7
9
10
4
6
11
17
5
6
23
3
16
1
21
19
12
8
15
14
22

Артикул

Название

Примечание

Количество

1

5164673

HALF SHAFT

RH, 277 mm lg

1шт.

W/Mech. trans.

1шт.

1

5186830

HALF SHAFT

RH, 268 mm lg

1шт.

2

5164674

HALF SHAFT

LH, 277 mm lg

1шт.

W/Mech. trans.

1шт.

2

5186831

HALF SHAFT

LH, 286 mm lg

1шт.

3

5152030

RING GEAR

2шт.

4

5164689

SUPPORT

2шт.

5

4998880

SNAP RING,4mm Thk, Ext

2шт.

6

5145983

THRUST WASHER,53.6mm ID x 84mm OD x 1mm Thk

53.6 x 84 x 1

12шт.

7

5152128

ROLLER BEARING,53.5 mm ID x 67.5 mm OD x 47 mm

53.5 x 67.5 x 47

6шт.

8

5164672

DRIVEN GEAR

6шт.

9

5164691

PIN,53.5mm OD x 106.5mm L

6шт.

10

5102468

SPACER,56mm ID x 67.4mm OD x 5mm L

56 x 67.4 x 5

6шт.

11

5167049

CONTROL SHAFT

2шт.

12

15984331

BOLT,Hex, M18 x 1.5 x 50mm, Cl 10.9, Full Thd

2шт.

13

5146156

LOCKING PLATE

M18 x 1.5 x 50

2шт.

14

4996965

DISC,18.5mm ID x 82mm OD x 8mm Thk

2шт.

15

87651028

STUD,Wheel, M18 x 1.5 x 65mm, Cl 10.9

16шт.

16

87651026

NUT,M18, 1.5mm Pitch, Captive Wshr

M18 x 1.5

16шт.

17

5100941

NUT

For Cast Disc

16шт.

18

5152126

THRUST WASHER,64mm ID x 70.5mm OD x 5mm Thk

2шт.

19

24903470

BEARING ASSY,70mm ID x 110mm OD x 25mm W

70 x 110 x 25

2шт.

20

5152364

OIL SEAL,75mm ID x 95mm OD x 10mm Thk

75 x 95 x 10

2шт.

21

24903490

BEARING ASSY,80mm ID x 125mm OD x 29mm W

80 x 125 x 29

2шт.

22

13407211

LUBE NIPPLE,M10 x 1

2шт.

23

5149310

SEAL,100mm ID x 130mm OD x 16mm Thk

100 x 130 x 16

2шт.

Выбрано товаров: 27
