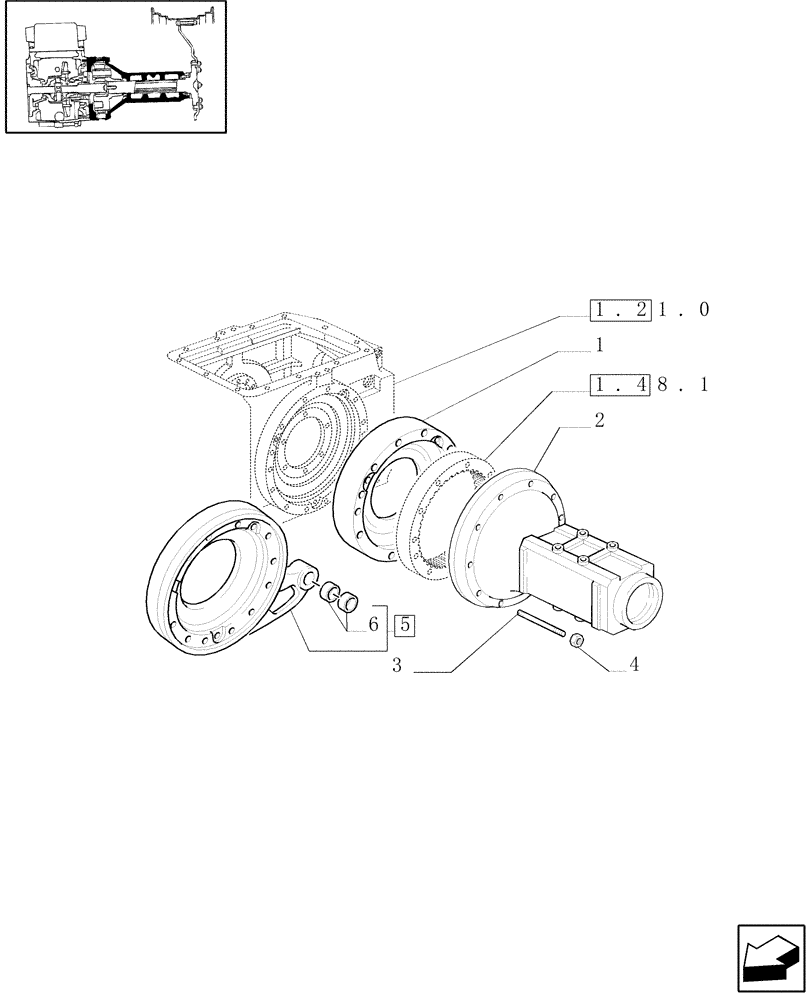

Запчасти Case IH MXM120 (1.48.0) - SIDE REDUCTION UNIT (FINAL DRIVE) HOUSING AND COVERS (05) - REAR AXLE

1

5152347

SPACER

1шт.

2

5164690

FINAL DRIVE HOUSING

MXM120, MXM130

2шт.

2

5164731

FINAL DRIVE HOUSING

Std for MXM140, MXM155

2шт.

W/ VAR. 431, 112" Bar Axle F/Cast Wheels (Heavy Duty Reduction) is used for MXM120, MXM130, too

1шт.

3

13557730

STUD,M14 x 1.5 x 20mm x 145mm, Cl 10.9

M14 x 145

1шт.

3

13557430

STUD,M14 x 1.5 x 28.00mm x 130.00mm, Cl 10.9, PLN

M14 x 130

1шт.

3

13557930

STUD,M14 x 1.5 x 20mm x 160mm, Cl 10.9

M14 x 160, MXM140, MXM155

1шт.

W/112" Bar Axle F/Cast Wheels (Heavy Duty Reduction) is used for MXM120, MXM130

1шт.

4

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

24шт.

5

5152349

SPACER

LH

1шт.

6

5153140

BUSHING,25.25mm ID x 30mm OD x 20mm L

2шт.
