(1.42.0[02]) - POWER STEERING HYDRAULIC CONTROL - (2WD)

Запчасти Case IH MXM120 (1.42.0[02]) - POWER STEERING HYDRAULIC CONTROL - (2WD) (04) - FRONT AXLE & STEERING

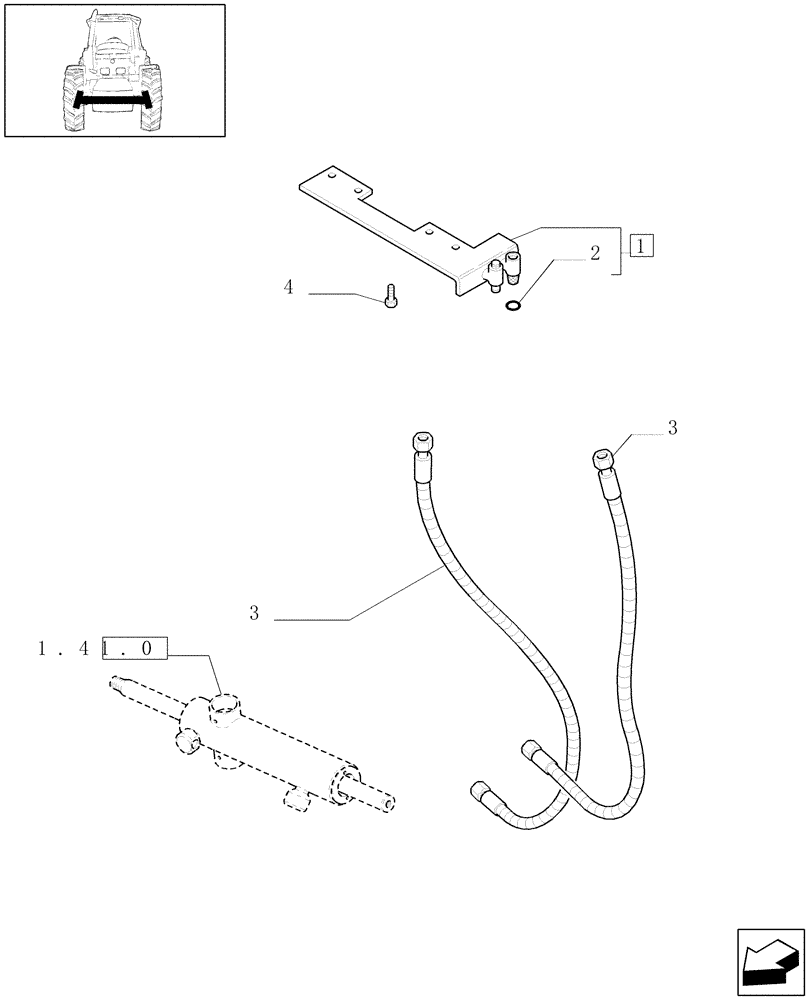

Схема запчастей Case IH MXM120 - (1.42.0[02]) - POWER STEERING HYDRAULIC CONTROL - (2WD) (04) - FRONT AXLE & STEERING
3
2
3
1.41.0
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82026193

TUBE

MXM120, MXM130, MXM140, MXM155, MXM175, MXM190

1шт.

2

89992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

0.500" x .070"

2шт.

2

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

90 Duro

6шт.

3

82030639

HYDRAULIC HOSE

MXM120, MXM130, MXM140, MXM155, MXM175, MXM190

2шт.

4

82019896

FLANGE BOLT,Hex, M8 x 1.5 x 16mm, Piloted

1шт.

Выбрано товаров: 5
