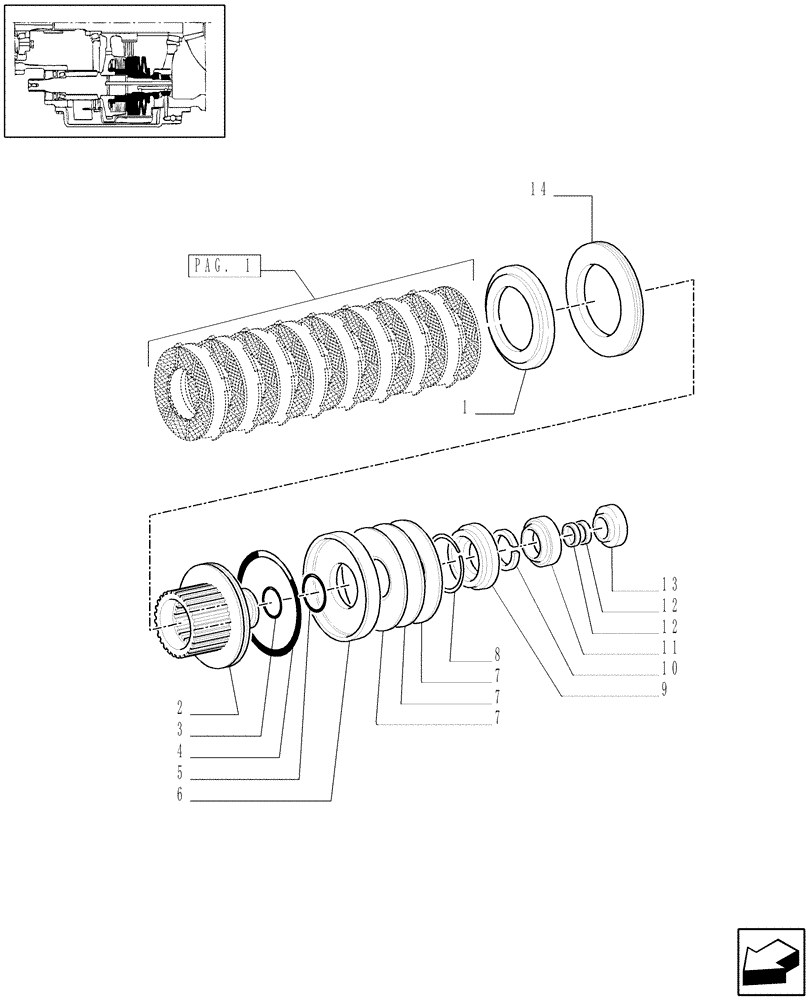

Запчасти Case IH MXM120 (1.33.3[02]) - START HYDRAULIC CLUTCH (4WD) (04) - FRONT AXLE & STEERING

1

5153332

PLATE

1шт.

2

5153328

HUB

1шт.

3

14458780

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1шт.

4

14462080

O-RING,0.103" Thk x 5.737" ID, -162, Cl 5, 75 Duro

1шт.

5

14459480

O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro

1шт.

6

5153331

PISTON

1шт.

7

5160408

BELLEVILLE SPRING

3шт.

8

5144584

CIRCLIP

1шт.

9

5153330

THRUST PLATE

1шт.

10

4977442

HALF-RING

2шт.

11

26799950

TAPERED BEARING,35mm ID x 72mm OD x 18.25mm W

35 x 72 x 18.25

1шт.

12

5185502

PISTON RING,28.5mm ID x 32mm OD x 2.1mm Thk

SEALRING

2шт.

13

5185982

MANIFOLD

1шт.

14

5153329

DISC,150mm OD x 65mm ID x 9.5mm Thk

VAR. 084-085

1шт.
