Запчасти Case IH MXM120 (1.32.8/01[03]) - MECHANICAL GEAR BOX 20X16 (40 KM/H) / PUMPS FOR HYDRAULIC SYSTEM AND LIFT (03) - TRANSMISSION

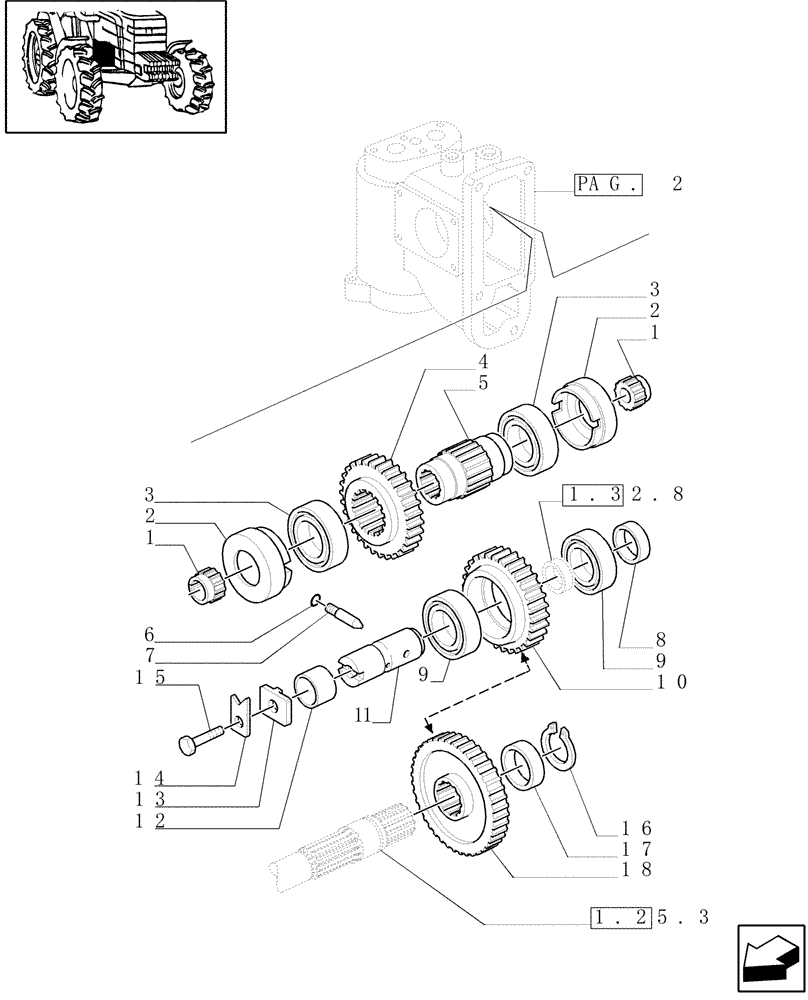

Схема запчастей Case IH MXM120 - (1.32.8/01[03]) - MECHANICAL GEAR BOX 20X16 (40 KM/H) / PUMPS FOR HYDRAULIC SYSTEM AND LIFT (03) - TRANSMISSION
p
1
9
1
3
4
1
2
5
13
3
18
8
17
12
7
ag. 2
1
16
2
6
15
1.25.3
1.32.8
10
14
9

Артикул

Название

Примечание

Количество

1

5155184

HUB

2шт.

2

5153102

SPACER

2шт.

3

5169829

BALL BEARING,40mm ID x 68mm OD x 15mm W

40 x 68 x 15

2шт.

4

5167216

DRIVEN GEAR

1шт.

5

5163239

DRIVE BUSHING,18T Internal / 21T External

1шт.

6

5103230

O-RING,2.62mm Thk x 11.91mm ID

2.62 x 11.91

1шт.

7

5167219

ROLL PIN

1шт.

8

5152078

SPACER,30mm ID x 38mm OD x 8mm L

1шт.

9

26799940

TAPERED BEARING,30.00mm ID x 62.00mm OD x 17.25mm

30 x 62 x 17.25

2шт.

10

5167215

GEAR

1шт.

11

5167218

PIN,30mm OD x 125mm L

1шт.

12

5167220

BUSHING,30mm ID x 40mm OD x 37mm L

1шт.

13

5178466

WASHER

1шт.

14

14198901

LOCKING PLATE,M12, Single Lock

1шт.

15

15540531

SCREW,Hex, M12 x 1.25 x 35mm, Cl 10.9, Full Thd

1шт.

16

11068376

SNAP RING,M35, Ext x 1.5 Thk

1шт.

17

5143806

SPACER,35.1mm ID x 45mm OD x 13.5mm L

1шт.

18

5167214

DRIVEN GEAR

1шт.

Выбрано товаров: 18
