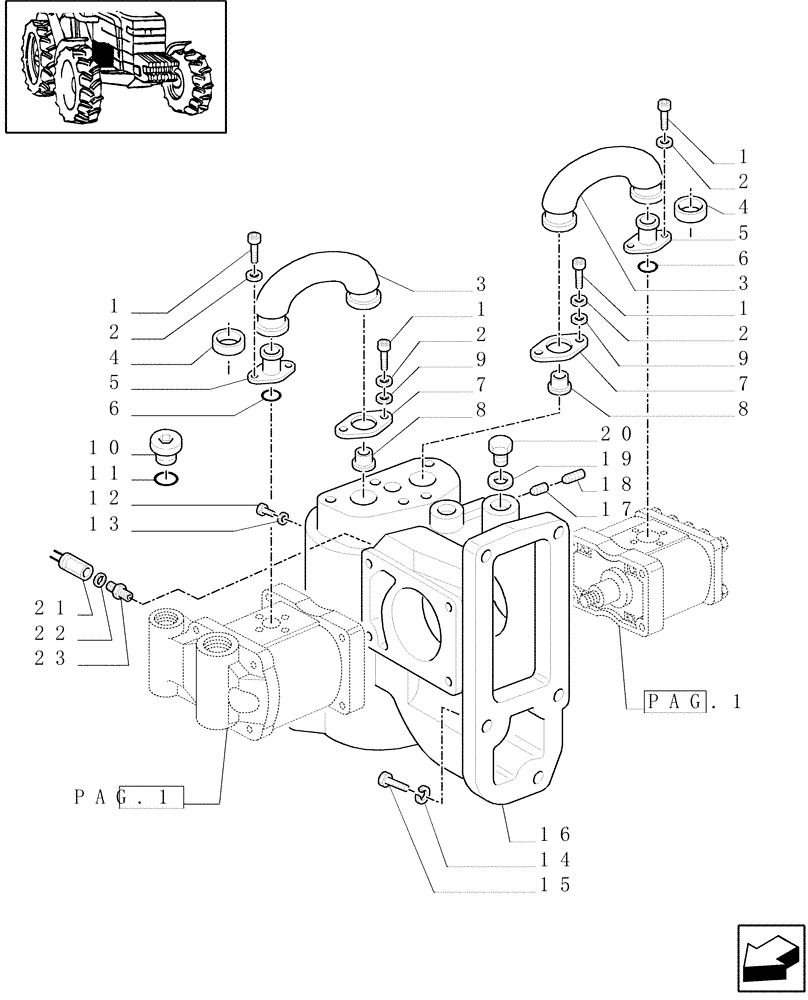

Запчасти Case IH MXM120 (1.32.8/01[02]) - MECHANICAL GEAR BOX 20X16 (40 KM/H) / PUMPS FOR HYDRAULIC SYSTEM AND LIFT (03) - TRANSMISSION

1

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

8шт.

2

10569370

LOCK WASHER,8.1mm ID x 12.7mm OD x 2mm Thk

8шт.

3

5159163

HOSE,23.5mm ID x 112mm L

2шт.

4

5159166

BUSHING,32mm ID x 36mm OD x 12mm L

2шт.

5

5159173

HYD CONNECTOR

2шт.

6

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

2шт.

7

5174244

FLANGE

2шт.

8

5159165

REINFORCEMENT

2шт.

9

12638521

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

4шт.

10

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

1шт.

11

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

12

10300911

PLUG,M8 x 1.25 x 11, Cl5.8

1шт.

13

2852057

SEALING WASHER,M8 x 12 x 1 Thk

1шт.

14

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

5шт.

15

15540521

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

5шт.

16

5173163

SUPPORT

(17, 18)

1шт.

17

10269150

PLUG,M6 x 1 x 60mm L

M6 x 1

2шт.

18

14159070

ROLL PIN

2.5 x 10

1шт.

19

4858608

SEAL,14mm ID x 19.50mm OD x 1.50mm Thk

1шт.

20

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

1шт.

21

5155313

PRESSURE SWITCH

Clog Indicator

1шт.

22

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

23

5155422

HYD CONNECTOR

1шт.
