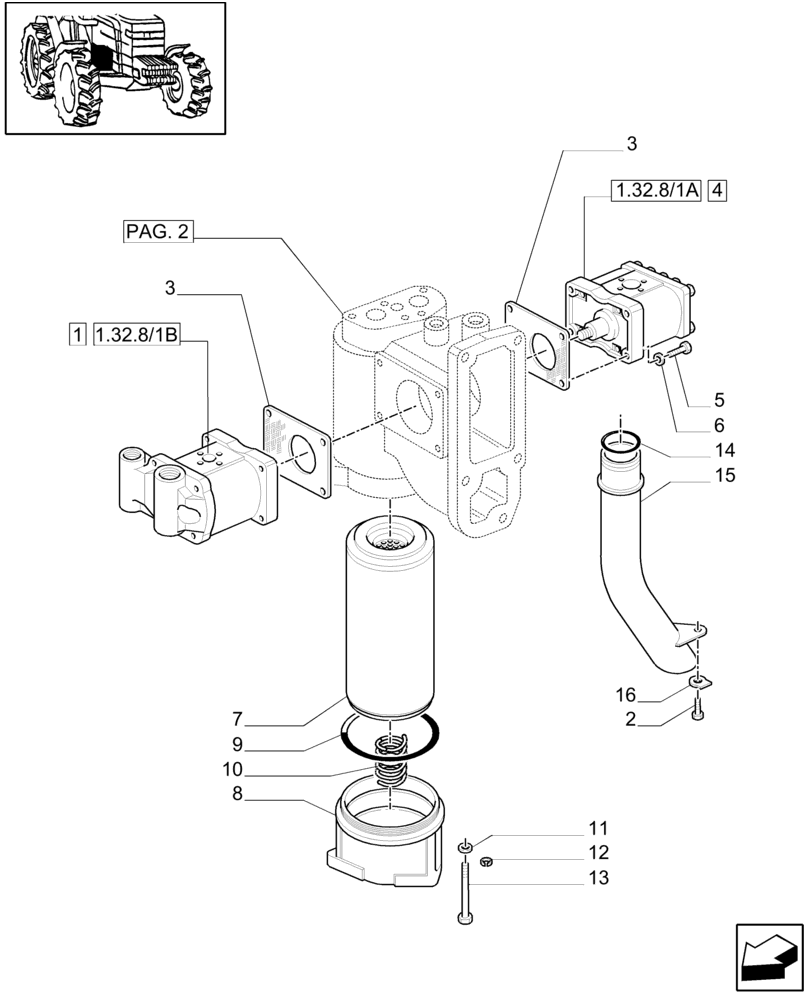

Запчасти Case IH MXM120 (1.32.8/01[01]) - MECHANICAL GEAR BOX 20X16 (40 KM/H) / PUMPS FOR HYDRAULIC SYSTEM AND LIFT (03) - TRANSMISSION

1

5180277

HYDRAULIC PUMP,318.33 CC

, Serial Range: -C5531

1шт.

5180277R

REMAN-HYD PUMP

MXM120, MXM130, MXM140 All Serial Range: -C5531 (6/02-)

1шт.

5180277C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

87525805

HYDRAULIC PUMP,18.19 CC

, Start Serial: D5531

1шт.

2

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

3

5167989

SEAL,0.8mm Thk

2шт.

4

5179726

HYDRAULIC PUMP

1шт.

84530167R

REMAN-HYD PUMP

MXM120, MXM130, MXM140 All (6/02-); Reman for New P/N 5179726

1шт.

84530167C

CORE-HYDRAULIC PUMP

Return Number

1шт.

5179726R

REMAN-HYD PUMP

MXM120, MXM130, MXM140, (6/02)

1шт.

5179726C

CORE-HYDRAULIC PUMP

Return Number

1шт.

5

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

8шт.

6

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

8шт.

7

87307705

HYDRAULIC OIL FILTER

1шт.

8

5153319

COVER

1шт.

9

14461580

O-RING,0.103" Thk x 4.487" ID, -157, Cl 5, 75 Duro

1шт.

10

5148745

SPRING

1шт.

11

11197874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 2.2mm Thk

3шт.

12

13397370

SNAP RING,M8, Int

3шт.

13

16044821

SCREW,Hex, M8 x 80mm, Cl 8.8

3шт.

14

14459480

O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro

1шт.

15

5178292

TUBE

1шт.

16

14198700

LOCKING PLATE,M8

1шт.
