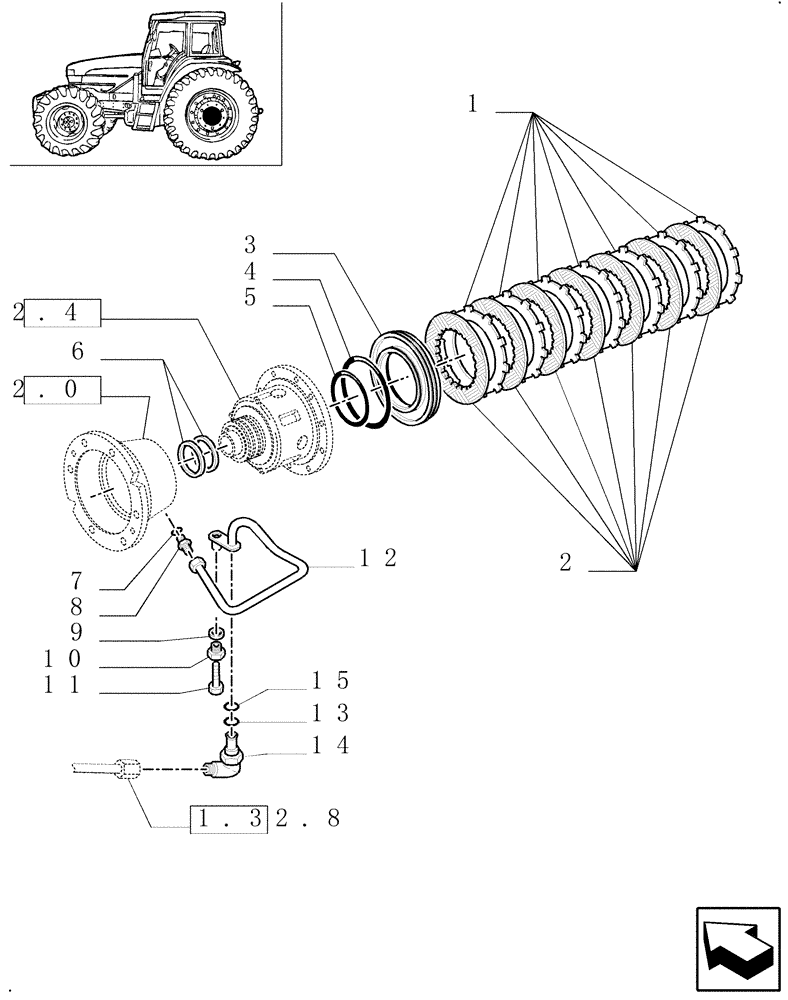

Запчасти Case IH MXM120 (1.32.6/01) - DIFFERENTIAL LOCKS (03) - TRANSMISSION

1

5162535

DRIVEN PLATE,142mm ID x 205mm OD x 1.8mm Thk

7шт.

2

5169729

CLUTCH PLATE,124mm ID x 188mm OD x 2.9mm Thk

7шт.

3

5162536

PISTON

1шт.

4

14462681

O-RING,7.237" ID x 0.103" Width

1шт.

5

14461881

O-RING,5.237" ID x 0.103"

1шт.

6

5139651

SEAL,108.4mm ID x 116mm OD x 4.5mm Thk

SEALRING

2шт.

7

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

8

5158810

HYD CONNECTOR,M12 x 1.5

1шт.

9

10284460

WASHER,M10.2 x 16 x 1.5, Copper

1шт.

10

5175268

PLUG,Hex, M18 x 1.5

M18 x 1.5

1шт.

11

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

1шт.

12

5175248

HYD TUBE

1шт.

13

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

14

5171482

HYD CONNECTOR

1шт.

15

14457081

O-RING,12.37mm ID x 2.62mm

1шт.
