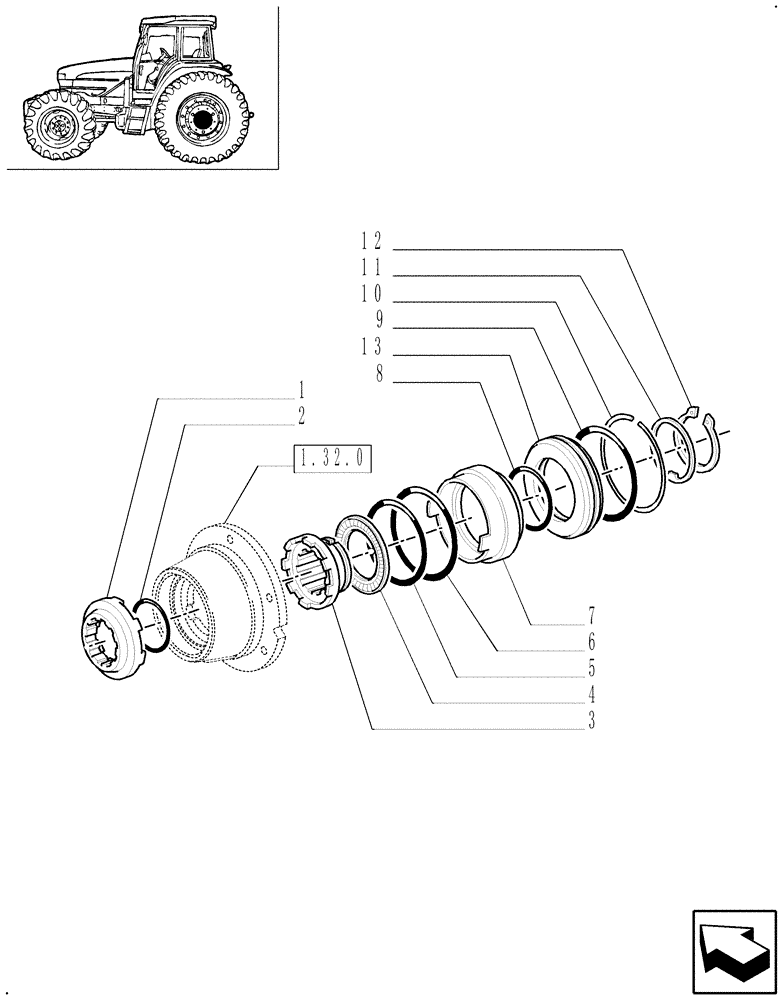

Запчасти Case IH MXM120 (1.32.6) - DIFFERENTIAL LOCKS (03) - TRANSMISSION

1

5171713

SLEEVE

1шт.

2

5154532

SNAP RING,3mm Thk, Ext

1шт.

3

5171714

SLEEVE,14T

1шт.

4

5154524

THRUST BEARING,85mm ID x 110mm OD x 3.5mm W

1шт.

5

5154526

SEAL,119.97mm ID x 127.5mm OD x 3.2mm Thk

DIA.=120

1шт.

6

5154523

SEAL,127.7mm ID x 135.26mm OD x 3.2mm Thk

DIA.=135

1шт.

7

5154520

PISTON

1шт.

8

5154527

SEAL,94.97mm ID x 102.5mm OD x 3.2mm Thk

DIA.=95

1шт.

9

14461780

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

1шт.

10

5154530

CIRCLIP

1шт.

11

5154528

SHIM,86mm ID x 98mm OD x 3mm Thk

1шт.

12

11071076

SNAP RING,M85, Ext

1шт.

13

5161768

PISTON

1шт.
