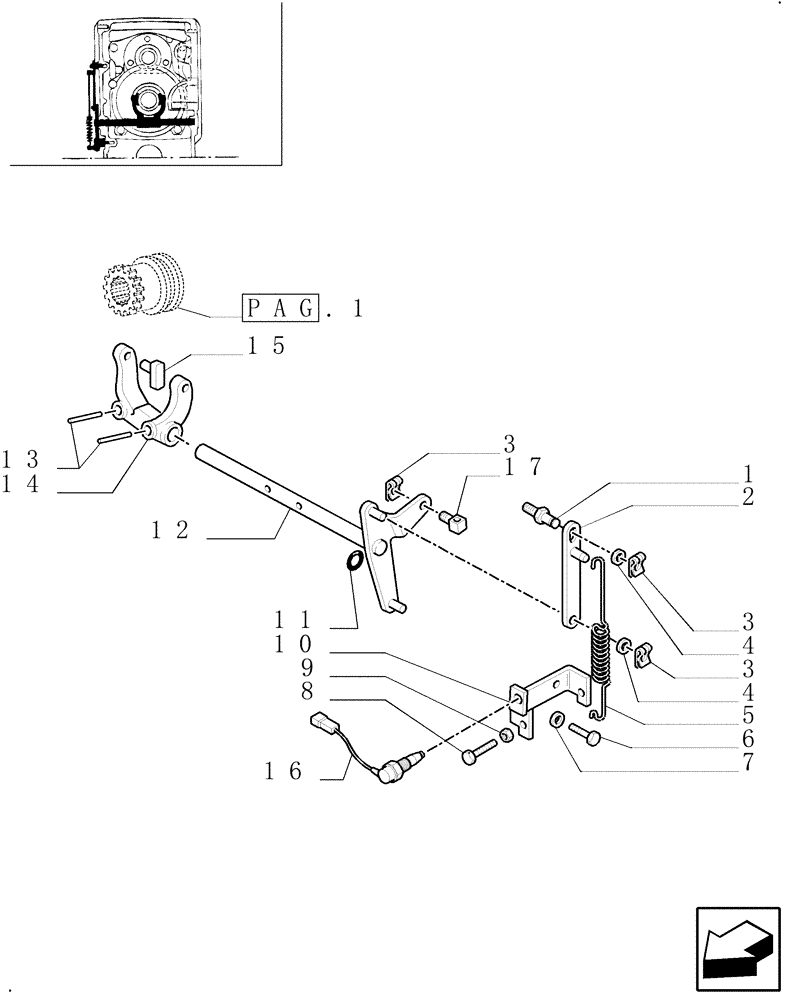

Запчасти Case IH MXM120 (1.32.3/02[03]) - (VAR.146) CREEPER TRANSMISSION FOR FULL POWER SHIFT - CONTROL REDUCTION (03) - TRANSMISSION

1

5142898

ADAPTER

1шт.

2

5129246

LEVER

1шт.

3

11064176

CLIP,M10 x 8mm

M10 x 8 x 1.05

3шт.

4

14499521

WASHER,10.5mm ID x 18mm OD x 2mm Thk

2шт.

5

5176852

SPRING

1шт.

6

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

8

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

9

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

10

5166263

SUPPORT

1шт.

11

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

12

5176851

LEVER

1шт.

13

14607270

LOCK PIN,M8 x 40, Slotted

2шт.

14

5148321

LEVER

1шт.

15

5152826

SLIDING PAD

2шт.

16

82014330

SWITCH

Reed Switch, N.C.

1шт.

17

5143043

PIN

1шт.
