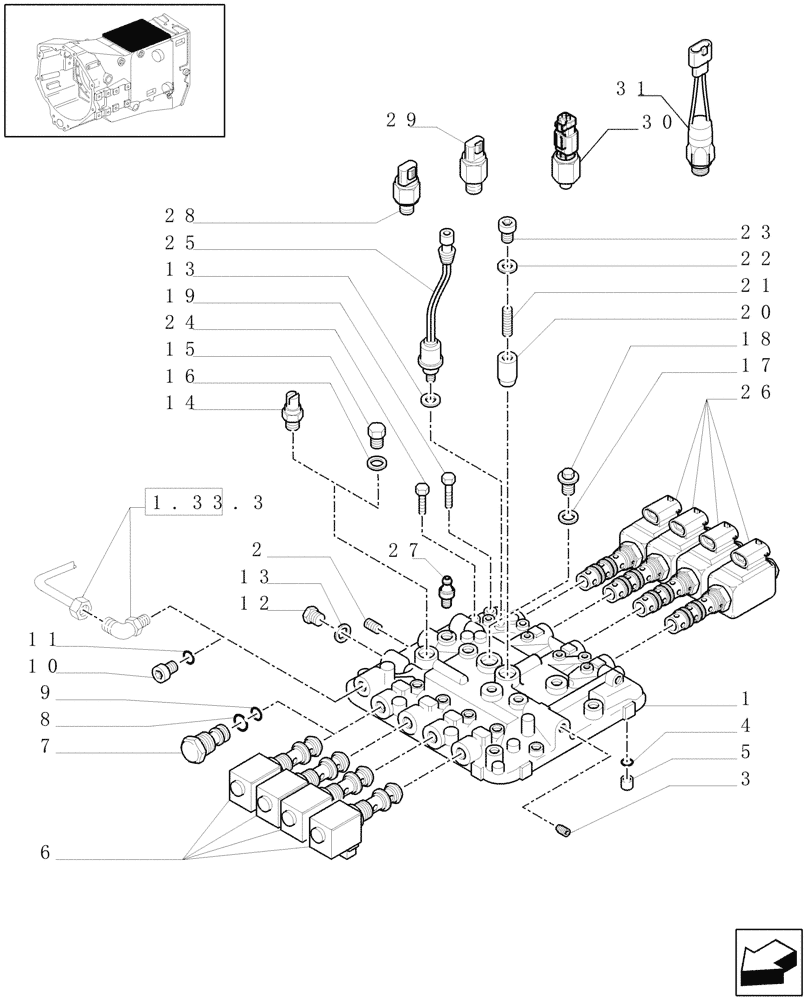

Запчасти Case IH MXM120 (1.32.2/04[01]) - (VAR.281) FULL POWER-SHIFT TRANS. 18X6 (40 KPH-4WD) AND 17X6 (30 KPH) - CENTRAL REDUCT.GEAR CTRL (03) - TRANSMISSION

1

5185151

COVER

1шт.

2

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

2шт.

3

14328401

PLUG,M14, Tapered

1шт.

4

14457281

O-RING,0.612" ID x 0.103" Width

3шт.

5

5178778

SPACER,11mm ID x 15mm OD x 15mm L

3шт.

6

5168052

SOLENOID VALVE

Solenoid W/Diode

1шт.

2WD Qty = 3; 4WD Qty = 4

1шт.

7

5154967

PLUG,Hex R0.2

2WD

1шт.

8

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

9

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

10

10119414

PLUG,M18 x 1.5 x 16

1шт.

11

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

12

11903011

PLUG,M10 x 1 x 11, Cl5.8

2шт.

13

10260960

SEALING WASHER,M10.2 x 14 x 1.5

6шт.

14

82031395

SWITCH ASSY

Trans. Oil

1шт.

15

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

2WD

1шт.

16

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

17

98429280

SEAL,20.3mm ID x 26mm OD x 1.5mm Thk

1шт.

18

10305811

PLUG,M20 x 1.5 x 19, Cl5.8

1шт.

19

11343724

BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8

4шт.

20

5187494

BY-PASS VALVE

By-Pass

1шт.

21

5176720

SPRING,Compression, 17mm OD x 50mm L

1шт.

22

10262160

SEAL,M28.4 x 34 x 2, Copper

1шт.

23

10278301

PLUG,M28 x 1.5 x 11, Brass

1шт.

24

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

5шт.

25

82028154

PRESSURE SWITCH

10mm thread, Serial Range: -ACM247564

4шт.

26

84148281

ELECTRO-VALVE

Solenoid, Proportional Pressure

4шт.

26

84148281R

REMAN-HYD VALVE

Remanufactured Electro-Valve

4шт.

26

84148281C

CORE-VALVE HYD

Return Number

4шт.

27

82028133

SENSOR,3/8"-18

Trans. Temp.

1шт.

28

87308215

PRESSURE SWITCH

Transmission Oil, Serial Range: ACM247565-C5361

4шт.

29

87533796

SWITCH ASSY

Transmission Oil, MXM175-MXM190, Serial Range: D5361-C5444

4шт.

30

87564681

PRESSURE SWITCH,M10 x 1

Transmission Oil, MXM175, MXM190, Serial Range: D5444-C6249

4шт.

30

87564683

PRESSURE SWITCH,M14 x 1.5

Transmission Oil, MXM120, MXM130, MXM140, MXM155, Serial Range: D5444-C6249

4шт.

31

87494226

PRESSURE SWITCH

Transmission Oil, MXM120, MXM130, MXM140, MXM155, Start Serial: D6249

4шт.

31

87494225

PRESSURE SWITCH

Transmission Oil, MXM175, MXM190, Start Serial: D6249

4шт.
