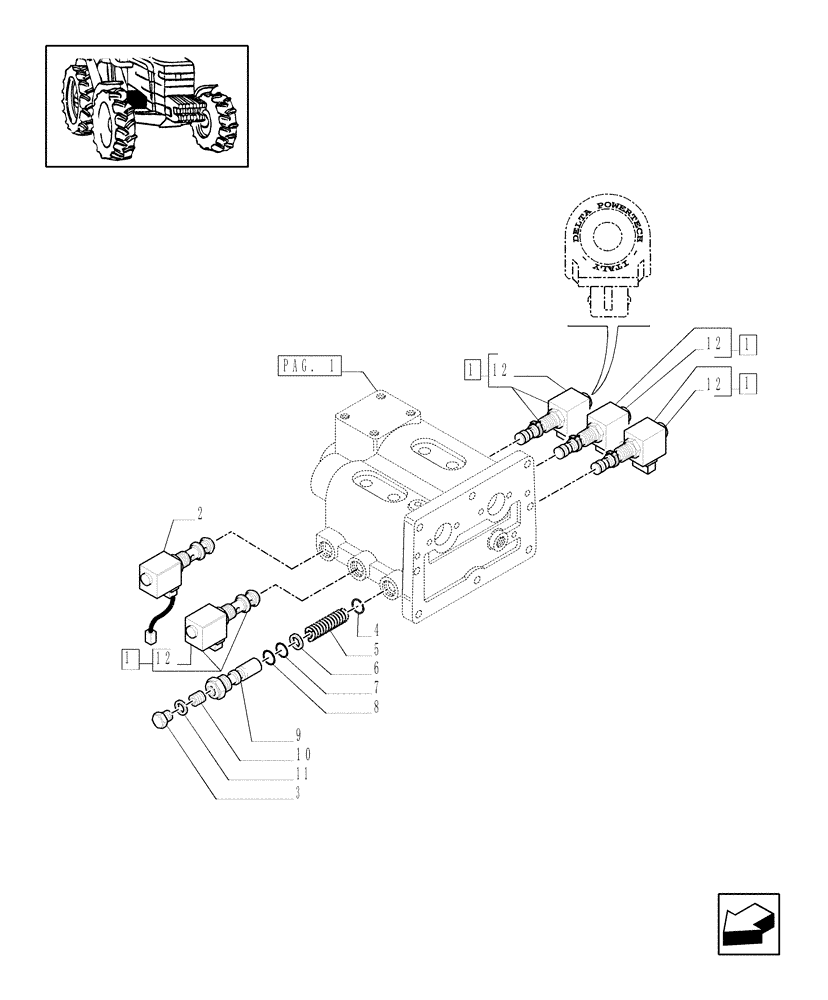

Запчасти Case IH MXM120 (1.32.2/01[02]) - MECHANICAL GEAR BOX 20X16 (40 KM/H) / INTERNAL SHIFTING CONTROLS (03) - TRANSMISSION

1

5168052

SOLENOID VALVE

Solenoid W/Diode

4шт.

2

82008511

SOLENOID VALVE

Solenoid, Dump

1шт.

3

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

4

13397776

SNAP RING,M16, Int

1шт.

5

5157119

SPRING,11.5mm x 127mm

1шт.

6

12637821

WASHER,5.15mm ID x 11mm OD x 1mm Thk

1шт.

7

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

8

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

9

5178518

PLUG

1шт.

10

5166873

SCREW,M8 x 10mm

M8 x 10

1шт.

11

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

12

9970157

SOLENOID VALVE

1шт.
