Запчасти Case IH MXM120 (1.32.2[03]) - CENTRAL REDUCTION GEAR CONTROLS (03) - TRANSMISSION

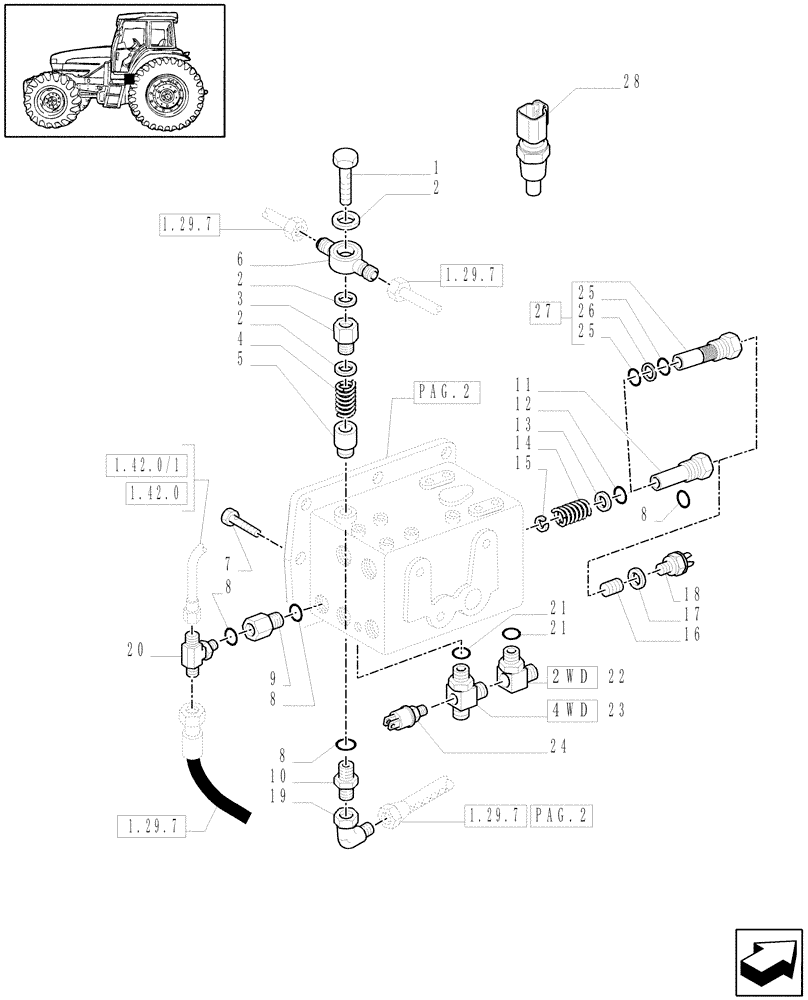

Схема запчастей Case IH MXM120 - (1.32.2[03]) - CENTRAL REDUCTION GEAR CONTROLS (03) - TRANSMISSION
12
20
15
8
25
8
25
28
2
27
4wd
23
22
26
8
8
9
2wd
24
1
18
6
19
5
4
2
13
2
10
21
7
17
3
21
14
pag.2
1.42.0/1
1.29.7
1.29.7
1.29.7
1.29.7
1.42.0
pag.2
16
11

Артикул

Название

Примечание

Количество

1

10182617

BANJO BOLT,M20 x 1.5 x 36mm

1шт.

2

98429280

SEAL,20.3mm ID x 26mm OD x 1.5mm Thk

3шт.

3

5164949

HYD CONNECTOR

1шт.

4

5159185

SPRING,Compression, 12.5mm OD x 32.5mm L

1шт.

5

5169565

VALVE,By-Pass

Hydr. By-Pass

1шт.

6

5167927

HYD CONNECTOR

1шт.

7

16204524

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8

8шт.

8

14438085

O-RING,19.3mm ID x 2.4mm

4шт.

9

5165659

HYD CONNECTOR

1шт.

10

5158803

HYD CONNECTOR,M22 x 1.5 ORB x 7/8" - 14 JIC

1шт.

11

5178518

PLUG

M22 x 1.5, Serial Range: -C4881

1шт.

12

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

13

12637804

WASHER,5.15mm ID x 11mm OD x 1mm Thk

1шт.

14

5157119

SPRING,11.5mm x 127mm

1шт.

15

13397776

SNAP RING,M16, Int

1шт.

16

5166873

SCREW,M8 x 10mm

, Serial Range: -C4881

1шт.

16

NSS

NOT SOLD SEPARAT

, Start Serial: D4881

1шт.

17

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

18

82031395

SWITCH ASSY

Trans. Oil, M12 x 1.5, 55mm L

1шт.

19

5155622

ELBOW

1шт.

20

5155514

TEE

1шт.

21

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

22

5170940

ELBOW

2WD (M10 x 1 / M16 x 1.5 / 3/4" - 16 UNF)

1шт.

23

5170941

TEE

4WD (M10 x 1 / M16 x 1.5 / 3/4" - 16 UNF / 3/4" - 16 UNF)

1шт.

24

82008236

SWITCH ASSY

Trans. Oil, M10 x 1, 51mm L

1шт.

25

5196684

BACK-UP RING,14.66mm ID x 19.02mm OD x 1.39mm Thk

, Start Serial: D4881

2шт.

26

14457181

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

, Start Serial: D4881

1шт.

27

47135285

PLUG,M22 x 1.5

, Start Serial: D4881

1шт.

27

NSS

NOT SOLD SEPARAT

1шт.

"Valve / Spool = NSS - it is included in Support 5178478"

1шт.

28

87564690

TEMPERATURE SENDER,3/8" - 18

Transmission Temperature, Start Serial: D5444

1шт.

Выбрано товаров: 31
