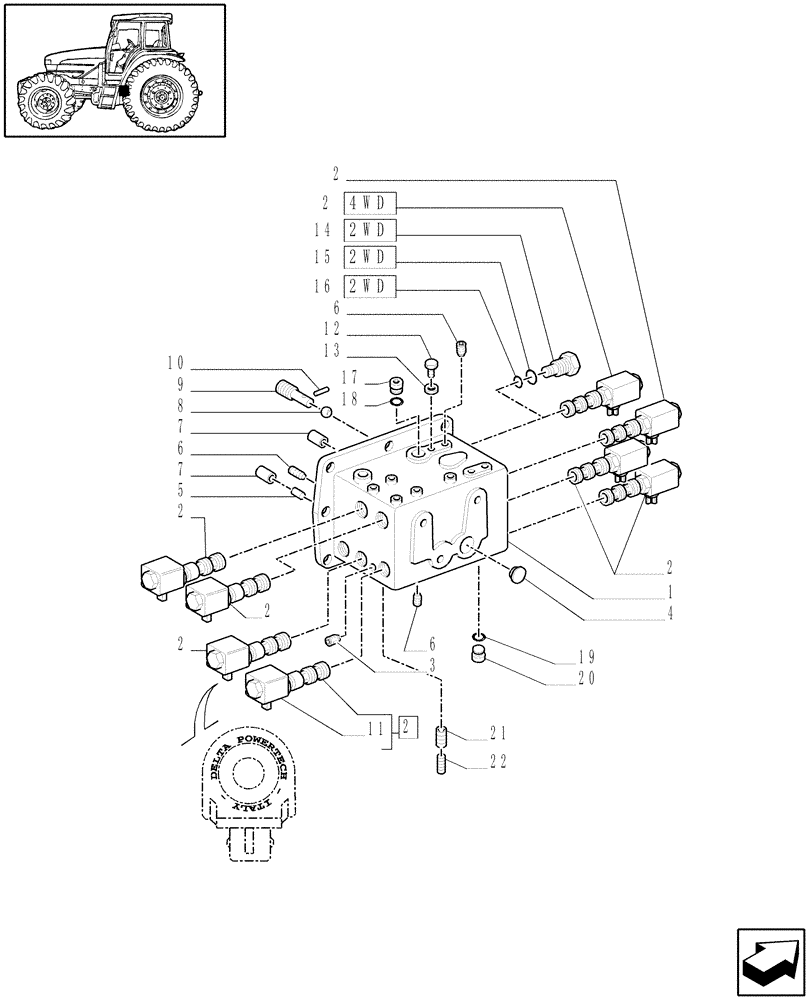

Запчасти Case IH MXM120 (1.32.2[02]) - CENTRAL REDUCTION GEAR CONTROLS - SOLENOIDS (03) - TRANSMISSION

1

5178478

SUPPORT

(Incl. 3, 4, 5, 6, 7)

1шт.

Incl. "Valve/Spool = NSS"

1шт.

2

5168052

SOLENOID VALVE

Solenoid W/Diode

1шт.

Qty 7 for 2WD, Qty 8 for 4WD

1шт.

3

10269404

PLUG,M12 x 1.5

M12 x 1.5

1шт.

4

14328801

PLUG,M22, Tapered

1шт.

5

10839710

DOWEL,M10 x 15.00mm

M10 x 15

2шт.

6

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

12шт.

7

5120207

BUSHING,10.5mm ID x 12.7mm OD x 19mm L

2шт.

8

20063430

BALL,4.76mm OD, Gr 100

1шт.

9

5170016

SCREW,M12 x 1.5 x 25mm

M12 x 1.25 x 25

1шт.

10

14158370

LOCK PIN,M2 x 8, Slotted

1шт.

11

9970157

SOLENOID VALVE

1шт.

12

11903011

PLUG,M10 x 1 x 11, Cl5.8

4шт.

13

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

4шт.

14

5154967

PLUG,Hex R0.2

2WD

1шт.

15

14438085

O-RING,19.3mm ID x 2.4mm

2WD

1шт.

16

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2WD

1шт.

17

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

18

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

19

14437985

O-RING,15.3mm ID x 2.4mm

2WD

1шт.

20

10119414

PLUG,M18 x 1.5 x 16

2WD

1шт.

21

87323514

SLEEVE VALVE

2шт.

22

10269404

PLUG,M12 x 1.5

2шт.
