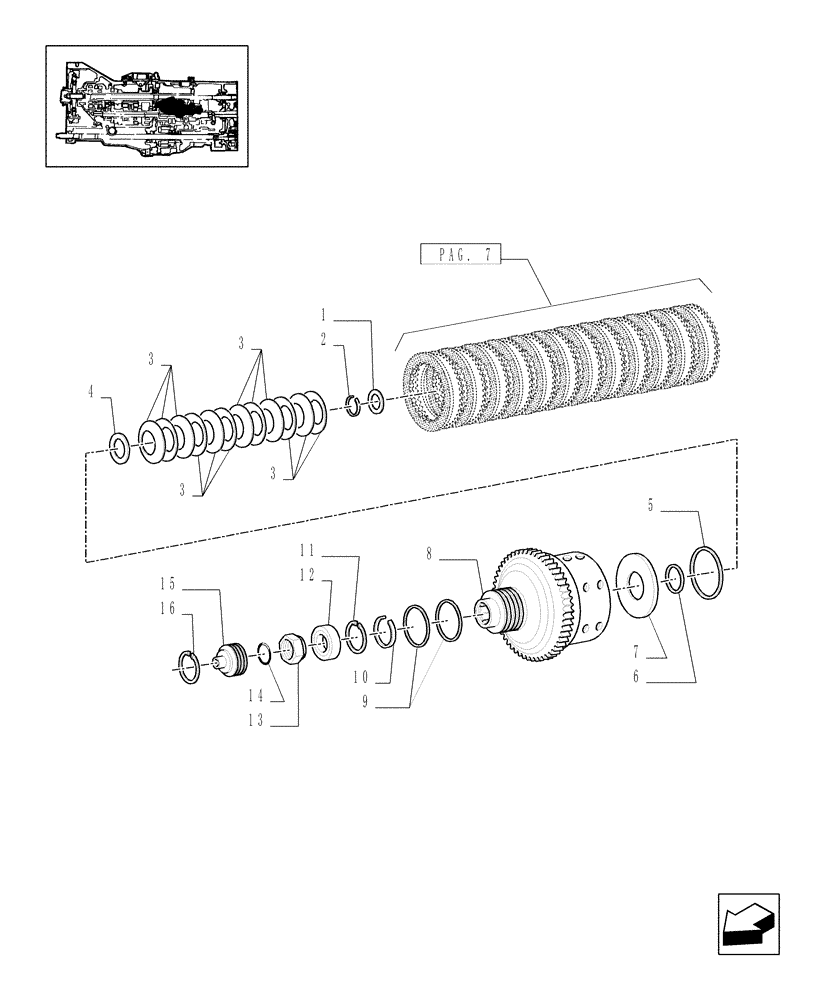

Запчасти Case IH MXM120 (1.32.1/03[08]) - (VAR.281) FULL POWER-SHIFT TRANS. 18X6 (40 KPH-4WD) AND 17X6 (30 KPH) - CENTRAL REDUCTION GEARS (03) - TRANSMISSION

1

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

1шт.

2

5175981

CIRCLIP,1.5mm Thk

1шт.

3

5177755

SPRING

, Serial Range: -C5486

12шт.

3

87547948

BELLEVILLE SPRING,60.8mm ID x 95mm OD x 2.3mm Thk

, Start Serial: D5486

12шт.

4

5187837

RING

61 x 85.055/85.070 x 3, Serial Range: -C5486

1шт.

4

87547832

RING,61mm ID x 84.95mm OD x 3mm Thk

, Start Serial: D5486

1шт.

5

5172302

GASKET,140.55mm ID x 148mm OD x 3.2mm Thk

1шт.

6

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

7

5187424

PISTON

1шт.

8

5185370

HUB

, Serial Range: -C5051

1шт.

8

87303631

HUB

, Start Serial: D5051

1шт.

9

5131232

OIL SCRAPER RING,Split, 83.02mm ID x 90mm OD x 2.22mm Thk

SEALRING

2шт.

10

13398976

SNAP RING,M40, Int

1шт.

11

11062476

SNAP RING,M90, Int

1шт.

12

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

40 x 90 x 23 mm

1шт.

13

5119147

RING NUT,M40 x 1.5

x 19.5 M40 x 1.5

1шт.

14

14460980

O-RING,75.87mm ID x 2.62" Width

1шт.

15

5172255

COVER

1шт.

16

11062076

SNAP RING,M82, Int

1шт.
