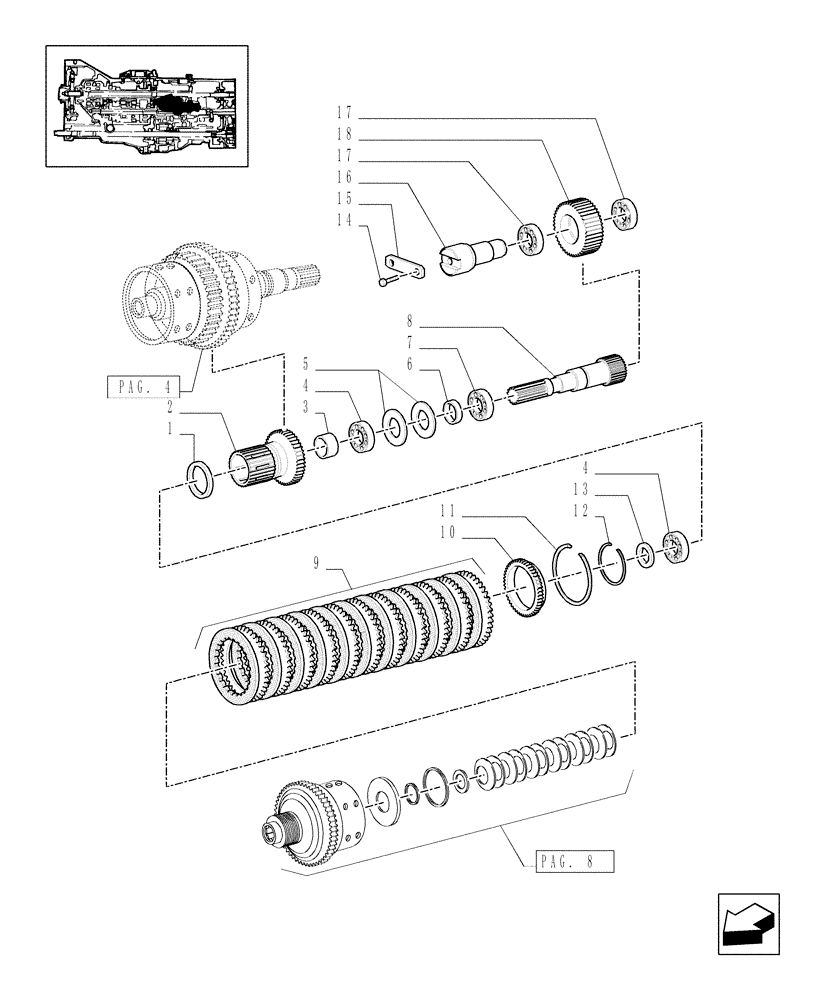

Запчасти Case IH MXM120 (1.32.1/03[07]) - (VAR.281) FULL POWER-SHIFT TRANS. 18X6 (40 KPH-4WD) AND 17X6 (30 KPH) - CENTRAL REDUCTION GEARS (03) - TRANSMISSION

1

81865152

SEAL,107.72mm ID x 116.32mm OD x 3.8mm Thk

1шт.

2

5185166

GEAR,31T, 52T

1шт.

3

5185165

SPACER,55.1mm ID x 64mm OD x 28mm L

55.1/55.3 x 64 x 28

1шт.

4

28042510

BALL BEARING,55mm x 90mm x 18mm

55 x 90 x 18

2шт.

5

5183706

THRUST WASHER,55.1mm ID x 89mm OD x 1mm Thk

55.1 x 89 x 1

2шт.

6

5187839

SPACER,55.1mm ID x 64mm OD x 9.5mm L

55.1/55.3 x 64 x 9.5

1шт.

7

5185575

NEEDLE BEARING,55mm ID x 100mm OD x 25mm W

55 x 100 x 25

1шт.

8

5185169

SHAFT,322mm L

1шт.

9

5172232

KIT

Clutch Plates, Serial Range: -C5603

1шт.

9

87530794

CLUTCH PACK

Clutch Plates, Start Serial: D5603

1шт.

10

5179115

DISC,117.02mm ID x 154.35mm OD x 12.5mm Thk

1шт.

11

5162251

CIRCLIP,142.5mm ID

1шт.

12

5179124

CIRCLIP

1шт.

13

5187838

SPACER,46.1mm ID x 68mm OD x 5.5mm L

46.1/46.3 x 68 x 5.5

1шт.

14

14238024

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

15

5179133

PLATE

1шт.

16

5172246

PIN,39.98mm OD x 115mm L

1шт.

17

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

40 x 80 x 18

2шт.

18

5179293

GEAR,Z39

1шт.
