Запчасти Case IH MXM120 (1.32.1[03]) - CENTRAL REDUCTION GEARS (03) - TRANSMISSION

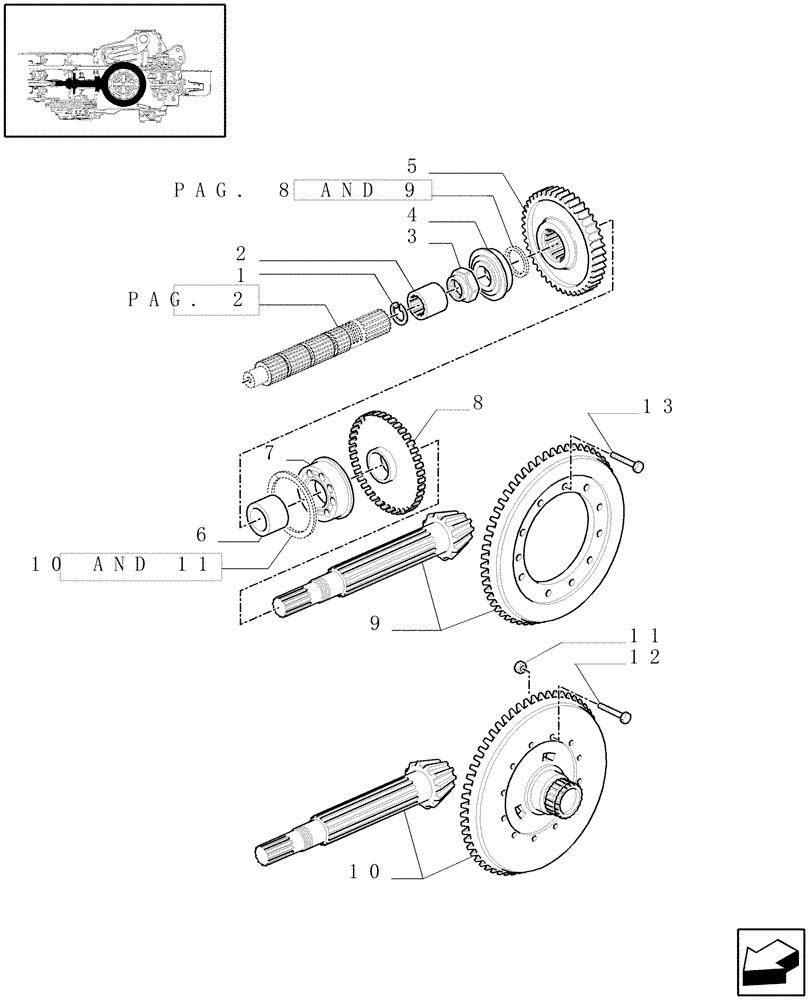

Схема запчастей Case IH MXM120 - (1.32.1[03]) - CENTRAL REDUCTION GEARS (03) - TRANSMISSION
6
3
pag. 2
13
5
pag. 8 and 9
9
12
4
7
2
pag. 10 and 11
10
1
8
11

Артикул

Название

Примечание

Количество

1

11059776

SNAP RING,M38, Int

1шт.

2

5176850

SLEEVE,20T

1шт.

3

5147930

RING NUT,M45 x 1.5

x 17 M45 x 1.5

1шт.

4

5138727

BEARING ASSY,45mm ID x 106mm OD x 27.25mm W

45 x 100 x 27.25

1шт.

5

5152268

DRIVING GEAR

4WD, MXM120, MXM130

1шт.

5

5163666

DRIVING GEAR,Z43

4WD, MXM140, MXM155

1шт.

W/112" Bar Axle F/Cast Wheels (Heavy Duty Reduction) is used for MXM120, MXM130

1шт.

W/Semi Power Shift Trans. 17 x 6 (JAPAN) Equip. 084 or W/Full Power Shift Trans. 17 x 6 (JAPAN) Equip. 085

1шт.

6

5145129

SPACER,55mm ID x 70mm OD x 42.5mm L

1шт.

7

5128721

TAPERED BEARING,55mm ID x 120mm OD x 45.5mm W

MXM120, MXM130

1шт.

7

5111271

ROLLER BEARING,60mm ID x 125mm OD x 37mm W

MXM140, MXM155

1шт.

W/112" Bar Axle F/Cast Wheels (Heavy Duty Reduction) is used for MXM120, MXM130

1шт.

W/Semi Power Shift Trans. 17 x 6 (JAPAN) Equip. 084 or W/Full Power Shift Trans. 17 x 6 (JAPAN) Equip. 085

1шт.

8

5183201

GEAR

MXM120, MXM130

1шт.

8

5183202

GEAR,Z47

MXM140, MXM155

1шт.

9

5162572

BEVEL GEAR,10/43 Ratio

Ring & Pinion, (Ratio 10/43) MXM140, MXM155

1шт.

W/112" Bar Axle F/Cast Wheels (Heavy Duty Reduction) is used for MXM120, MXM130

1шт.

9

47136248

GEAR SET

Ring & Pinion, (Ratio 9/41)

1шт.

W/Semi Power Shift Trans. 17 x 6 (JAPAN) Equip. 084 or W/Full Power Shift Trans. 17 x 6 (JAPAN) Equip. 085

1шт.

10

5154690

GEAR SET

Ring & Pinion, (Ratio 10/43) MXM120, MXM130

1шт.

11

16109225

LOCK NUT,M12 x 1.25

MXM120, MXM130

12шт.

12

15540831

BOLT,Hex, M12 x 1.25 x 50mm, Cl 10.9

MXM120, MXM130

12шт.

13

5163988

BOLT,Hex, M14 x 1.5 x 93mm

M14 x 1.5 x 93

10шт.

Выбрано товаров: 23
