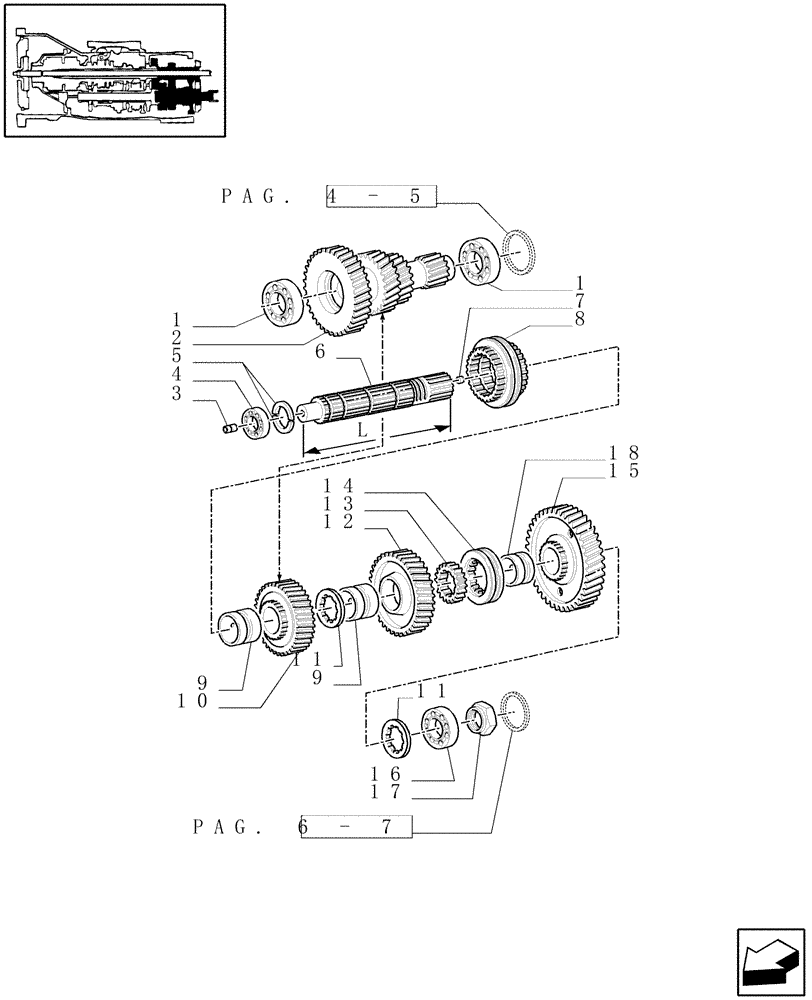

Запчасти Case IH MXM120 (1.32.1[02A]) - 20X16 MECHANICAL GEAR BOX (40 KMH) / CENTRAL REDUCTION GEARS (03) - TRANSMISSION

1

86570632

TAPERED BEARING,50mm ID x 90mm OD x 24.75mm W

50 x 90 x 24.75

2шт.

2

5164780

MAIN SHAFT

1шт.

3

5166038

PIPE

1шт.

4

5180813

ROLLER BEARING,30mm ID x 27mm W

1шт.

5

5169085

RING,44mm ID x 56mm OD x 4mm Thk

1шт.

6

5180850

MAIN SHAFT,20T, 24T

318.25 mm lg

1шт.

7

5125566

DOWEL,M14 x 1.5 x 16mm

1шт.

8

5169029

SYNCHRONIZER

1шт.

9

5149116

BUSHING,49.43mm ID x 60mm OD x 49mm L

2шт.

10

5149252

GEAR

1шт.

11

5149239

THRUST WASHER,46mm ID x 75mm OD x 5mm Thk

2шт.

12

5164782

GEAR

1шт.

13

5149375

DRIVE BUSHING

1шт.

14

5149524

SYNCHRONIZER,38T

1шт.

15

5164781

DRIVEN GEAR

1шт.

16

5169086

ROLLER BEARING,47.5 mm ID x 100 mm OD x 27.25 mm

47.5 x 100 x 27.25

1шт.

17

5169091

NUT,Hex Flg, M47.50 x 1.5mm Pitch, 17mm High, LH

M47.5 x 1.5 LH thread

1шт.

18

5164770

RING

1шт.
