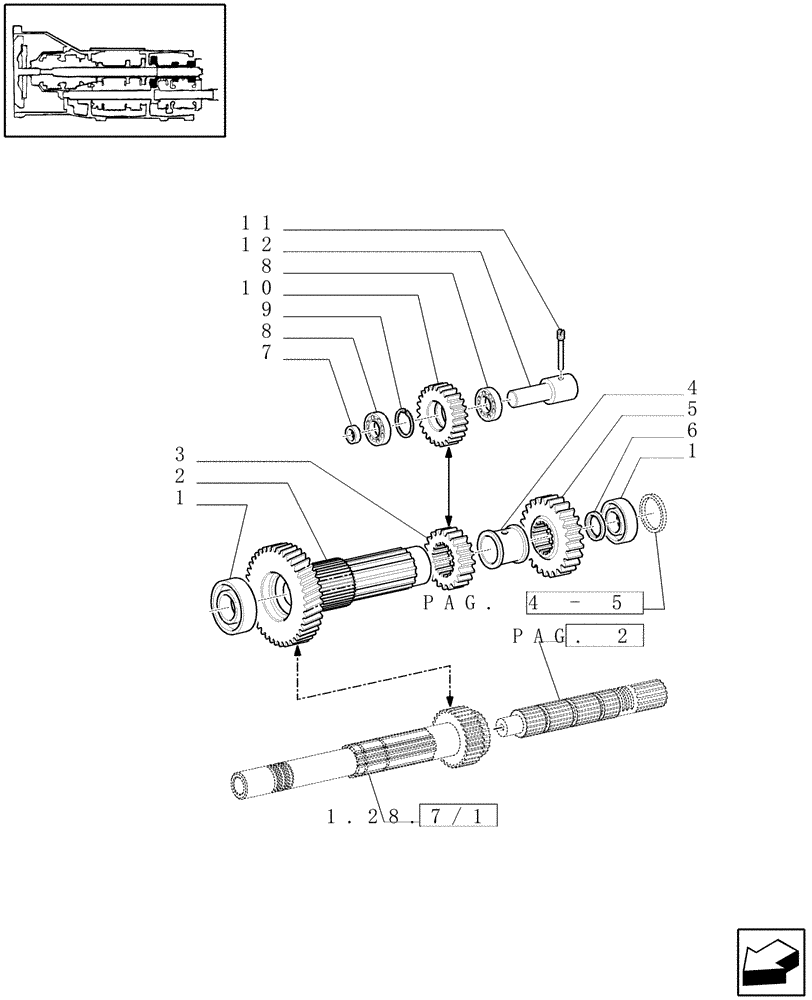

Запчасти Case IH MXM120 (1.32.1[01]) - CENTRAL REDUCTION GEARS (03) - TRANSMISSION

1

86570632

TAPERED BEARING,50mm ID x 90mm OD x 24.75mm W

50 x 90 x 24.75

2шт.

2

5166028

DRIVEN SHAFT,16T, 46T

1шт.

3

5160404

DRIVEN GEAR,16T, 21T

Reverser

1шт.

4

5160345

SPACER,58.3mm ID x 72mm OD x 44mm L

1шт.

5

5166035

GEAR,25T, 59T

1шт.

6

5166040

THRUST WASHER,50.1mm ID x 68mm OD x 4.5mm Thk

50 x 68 x 4.5

1шт.

7

5160347

SPACER,25mm ID x 34mm OD x 10mm L

1шт.

8

20996680

BALL BEARING,25mm ID x 62mm OD x 17mm W

2шт.

9

80370012

SNAP RING

1шт.

10

5160382

DRIVEN GEAR,24T

Reverser

1шт.

11

5178342

ROLL PIN,M10 x 1 x 96.5mm L

1шт.

12

5164846

SHAFT,25mm OD x 68mm L

1шт.
