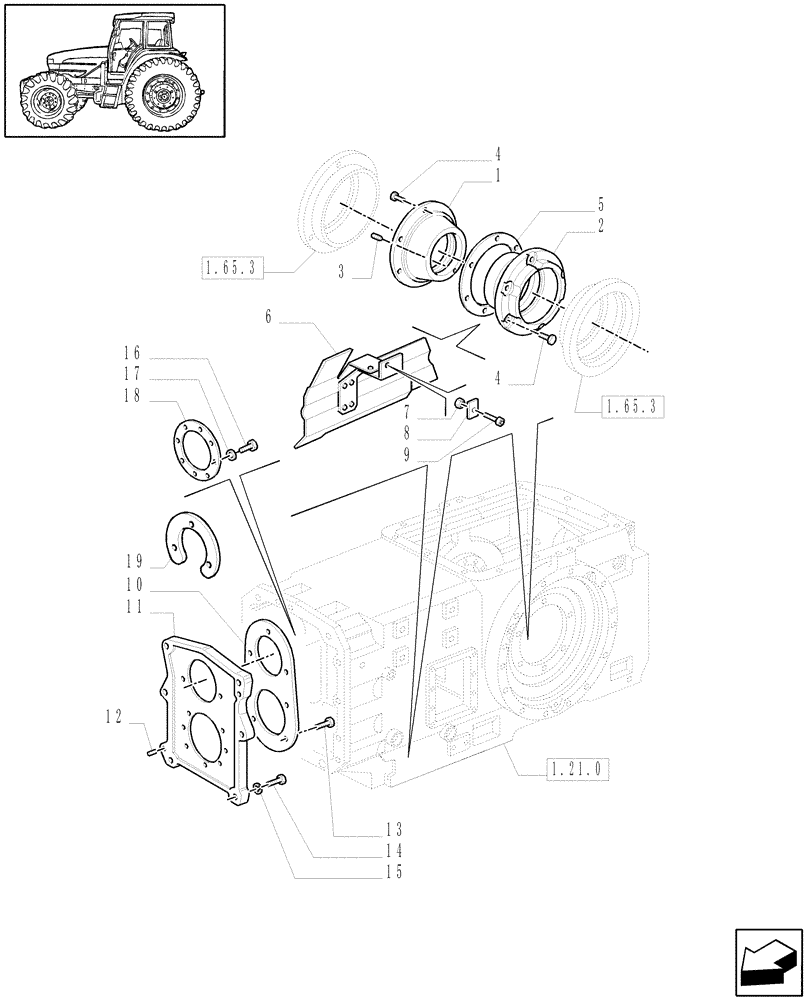

Запчасти Case IH MXM120 (1.32.0) - TRANSMISSION, COVERS AND SUPPORTS (03) - TRANSMISSION

1

5162538

SUPPORT

RH

1шт.

2

5162537

SUPPORT

LH

1шт.

3

10269350

PLUG

M10 x 1.25

2шт.

4

14233721

LOCK BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

12шт.

5

5152097

SHIM,168mm ID x 208mm OD x 0.15mm Thk

1шт.

5

5152098

SHIM,168mm ID x 208mm OD x 0.2mm Thk

1шт.

5

5152099

SHIM,168mm ID x 208mm OD x 0.5mm Thk

1шт.

6

5155028

GUARD

1шт.

7

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

8

14198700

LOCKING PLATE,M8

1шт.

9

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

10

5143257

PLATE

1шт.

11

5164785

SUPPORT

1шт.

12

10839710

DOWEL,M10 x 15.00mm

M10 x 15

2шт.

13

14233424

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

11шт.

14

11227024

BOLT,Hex, M14 x 1.5 x 65, 8.8

4шт.

14

11422030

BOLT,Hex, M14 x 1.5 x 55, 10.9

2шт.

15

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

6шт.

16

16204321

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8

8шт.

W/Full Power Shift trans. 18 x 6 (40 KPH-4WD) and 17 x 6 (30 KPH-2WD) Equip. 281

1шт.

17

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

8шт.

W/Full Power Shift trans. 18 x 6 (40 KPH-4WD) and 17 x 6 (30 KPH-2WD) Equip. 281

1шт.

18

5185547

PLATE

1шт.

W/Full Power Shift trans. 18 x 6 (40 KPH-4WD) and 17 x 6 (30 KPH-2WD) Equip. 281

1шт.

19

5164771

PLATE

VAR.448

1шт.
