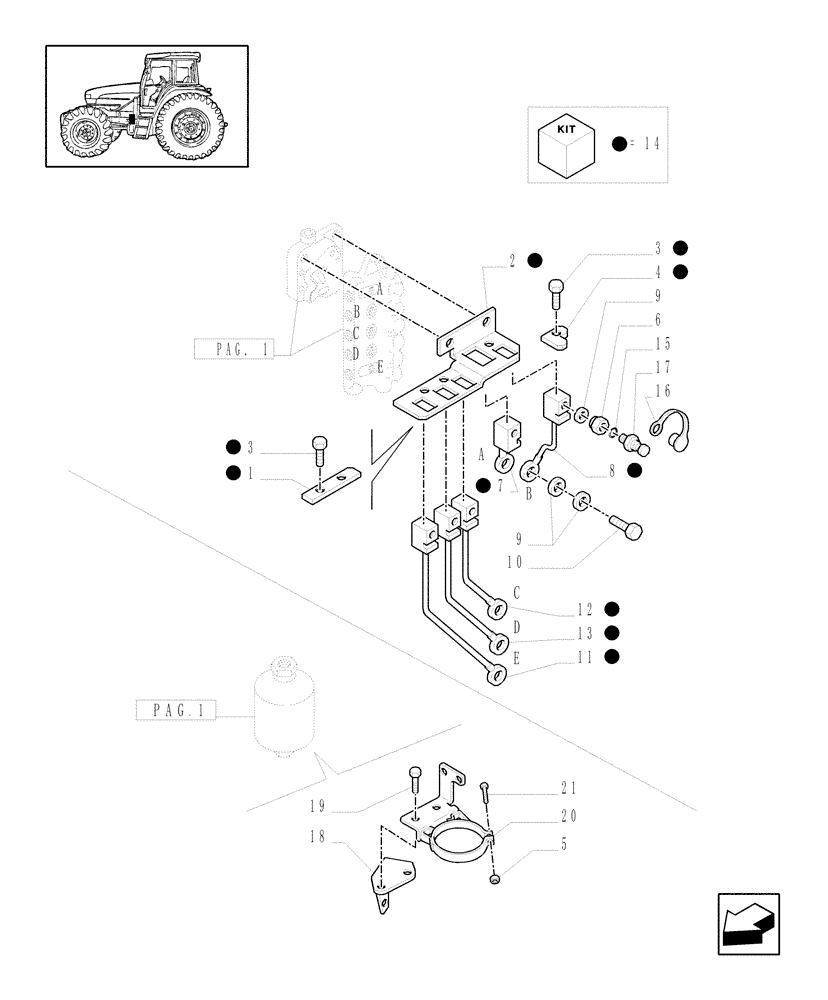

Запчасти Case IH MXM120 (1.29.6/02[02A]) - (VAR.281) FULL POWER-SHIFT TRANS. 18X6 (40 KPH-4WD) AND 17X6 (30 KPH) - HYDRAULIC GEARBOX CONTROL - D5439 (03) - TRANSMISSION

1

5173479

PLATE

1шт.

2

5173614

BRACKET

1шт.

3

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

3шт.

4

5173483

PLATE

1шт.

5

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

6

5185422

HYD CONNECTOR,M10 x 1 - M14 x 1.5

5шт.

7

87527241

HYD TUBE

1шт.

8

87527513

HYD TUBE,4 mm ID x 6 mm OD x 72, 26 mm L

1шт.

9

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

10шт.

10

87544613

BANJO BOLT

10 x 1.25 x 19

5шт.

11

87527781

HYD TUBE,4 mm ID x 6 mm OD x 171.5, 15.5 mm L

1шт.

12

87527753

HYD TUBE,4 mm ID x 6 mm OD x 105, 43 mm L

1шт.

13

87527772

HYD TUBE,4 mm ID x 6 mm OD x 133.5, 15.5 mm L

1шт.

14

87527788

KIT

1шт.

15

14437785

O-RING,11.3mm ID x 2.4mm

5шт.

16

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

5шт.

17

5185423

COUPLING

5шт.

18

5185385

BRACKET

1шт.

19

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

20

82019070

BRACKET

(21.22)

1шт.

21

11107021

BOLT,Hex, M10 x 45mm, Cl 8.8

1шт.
