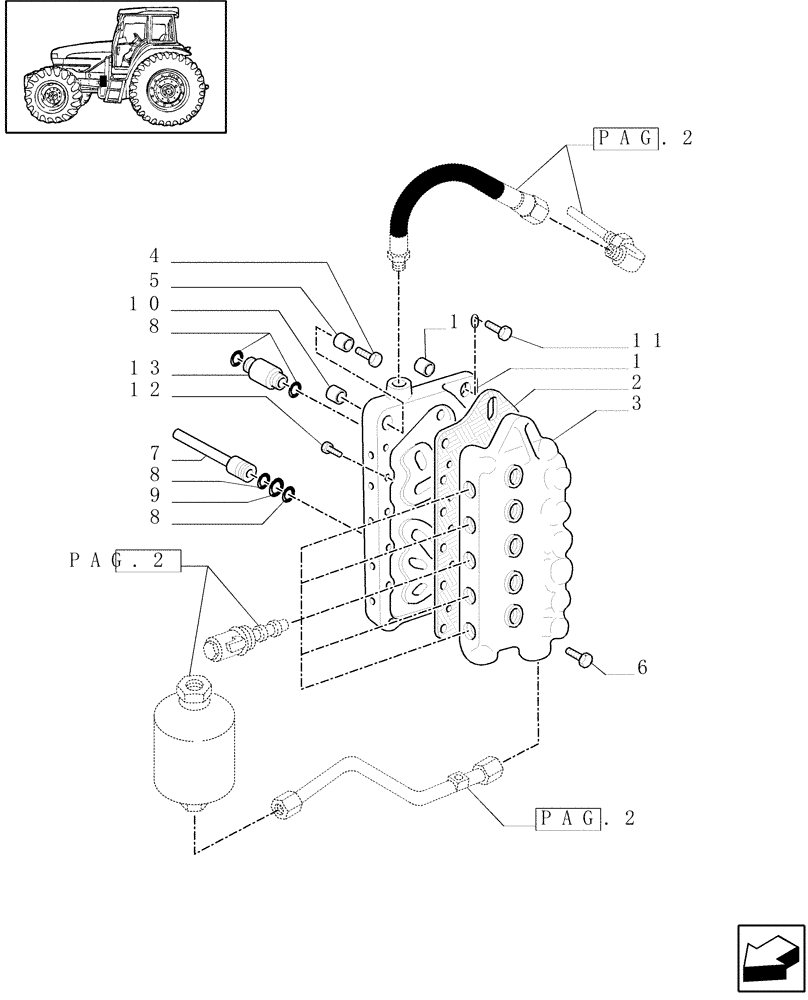

Запчасти Case IH MXM120 (1.29.6[01]) - HYDRAULIC GEARBOX CONTROL (03) - TRANSMISSION

1

5173780

SUPPORT

1шт.

2

5165241

GASKET,0.5mm Thk

1шт.

3

5173742

VALVE BODY

, Serial Range: -C5439

1шт.

3

87520332

VALVE BODY

, Start Serial: D5439

1шт.

4

15971624

SCREW,Hex, M10 x 1.25 x 90mm, Cl 8.8

1шт.

5

5173615

SPACER,10.5mm ID x 20mm OD x 27mm L

2шт.

6

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

1шт.

7

5162184

HYD CONNECTOR,M10 x 1.25, 136mm L

4шт.

8

14453181

O-RING,0.489" ID x 0.07" Width

10шт.

9

13397776

SNAP RING,M16, Int

4шт.

10

5173616

SPACER,10.5mm ID x 20mm OD x 37mm L

1шт.

11

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

1шт.

12

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

14шт.

13

5167065

HYD CONNECTOR,10mm ID, 44.5mm L

1шт.
