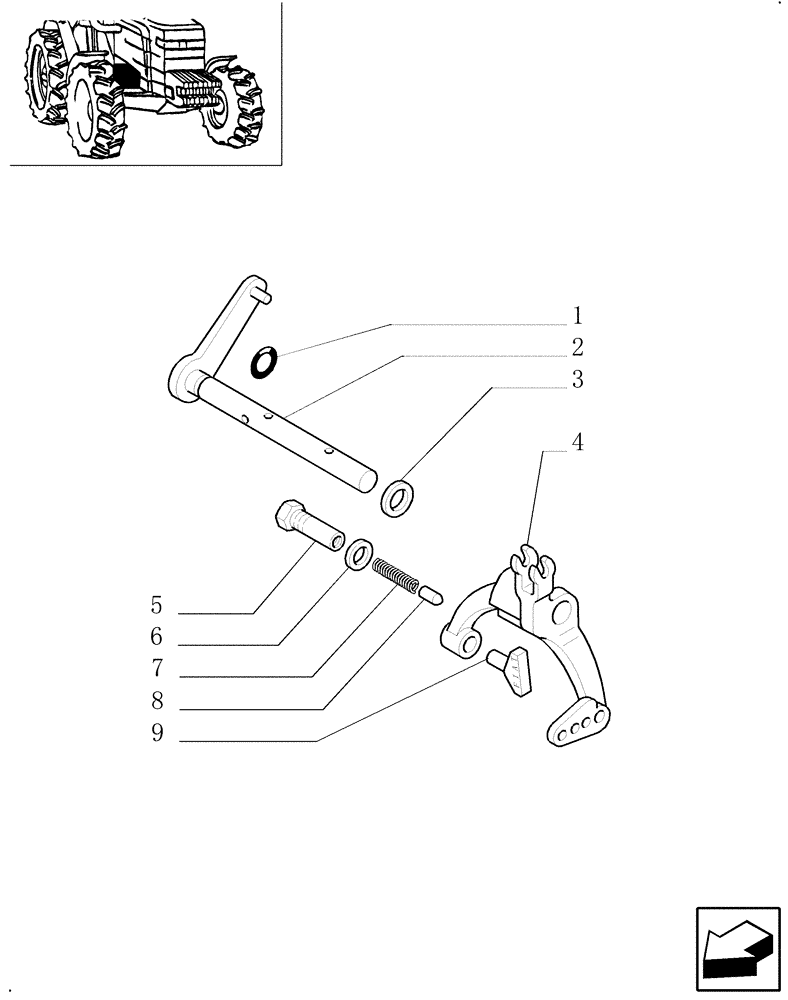

Запчасти Case IH MXM120 (1.29.0/01[02]) - (VAR.272) HI-LO 24X12 (SHUTTLE 40 KM/H) / INTERNAL SHIFTING CONTROLS (03) - TRANSMISSION

1

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

D = 35 x 21 x 2

1шт.

2

5169257

SHIFT RAIL

1шт.

3

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

D = 35 x 21 x 2

1шт.

4

5169124

SHIFTER FORK

1шт.

5

5166392

SLEEVE,Hex, M18 x 1.5 x 48mm

1шт.

6

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

1шт.

7

5166393

SPRING,8mm OD x 43mm L

1шт.

8

5166394

PAWL,10mm OD x 25mm L

1шт.

9

5152539

SLIDING PAD

2шт.
