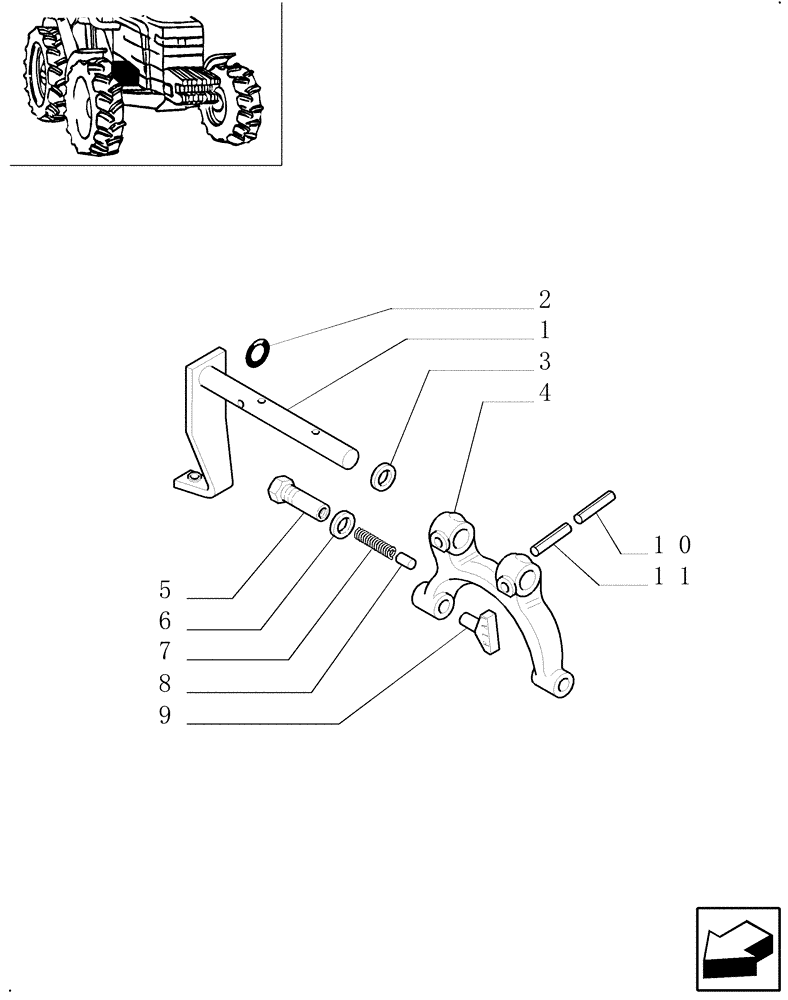

Запчасти Case IH MXM120 (1.29.0[02]) - MECHANICAL GEAR BOX 20X16 (40 KM/H) / INTERNAL SHIFTING CONTROLS (03) - TRANSMISSION

1

5173107

ROD

Reverser

1шт.

2

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

3

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

D = 35 x 21 x 2

1шт.

4

5159009

SHIFTER FORK

Reverser

1шт.

5

5166392

SLEEVE,Hex, M18 x 1.5 x 48mm

1шт.

6

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

1шт.

7

5166393

SPRING,8mm OD x 43mm L

1шт.

8

5166394

PAWL,10mm OD x 25mm L

10 x 25

1шт.

9

5152826

SLIDING PAD

2шт.

10

14601670

LOCK PIN,M5 x 40, Slotted

2шт.

11

14607270

LOCK PIN,M8 x 40, Slotted

2шт.
