Запчасти Case IH MXM120 (1.28.7/03[06]) - (VAR.281) FULL POWER-SHIFT TRANS. 18X6 (40 KPH-4WD) AND 17X6 (30 KPH) - CLUTCH ENGAGEMENT (03) - TRANSMISSION

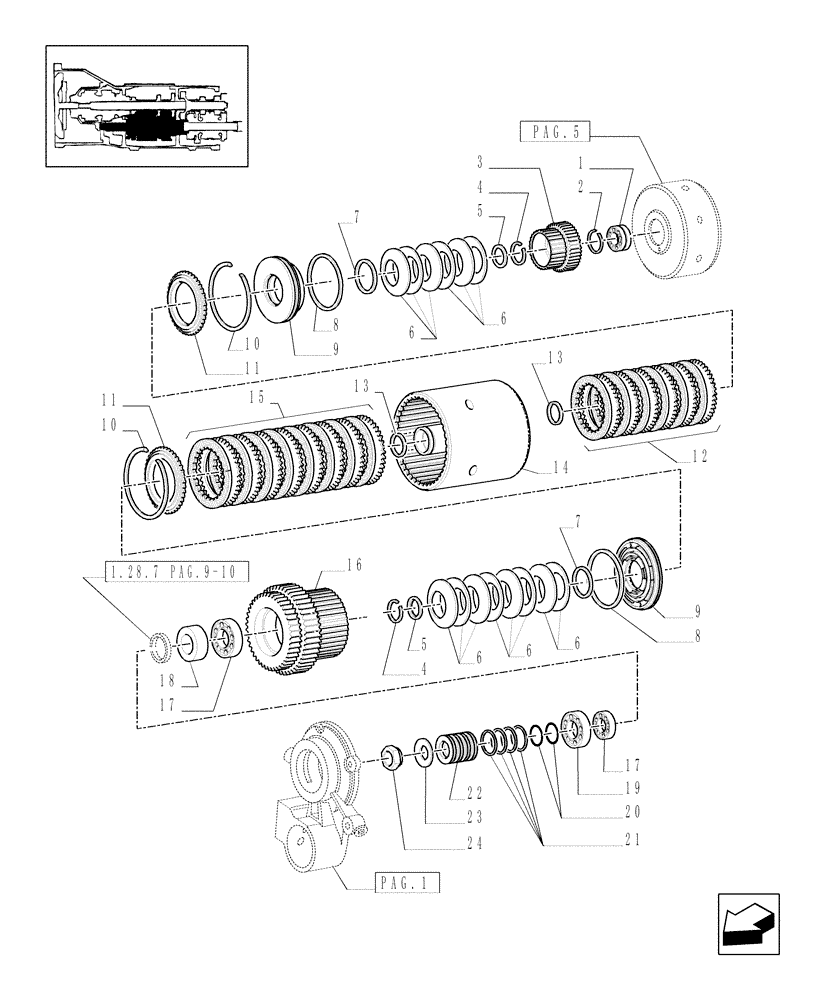

Схема запчастей Case IH MXM120 - (1.28.7/03[06]) - (VAR.281) FULL POWER-SHIFT TRANS. 18X6 (40 KPH-4WD) AND 17X6 (30 KPH) - CLUTCH ENGAGEMENT (03) - TRANSMISSION
9
5
7
17
10
15
9
10
21
6
18
6
20
6
2
4
11
19
pag.5
1.28.7 pag.9-10
pag.1
3
6
11
24
22
16
8
12
1
13
5
8
23
17
7
4
14
13
6

Артикул

Название

Примечание

Количество

1

5162622

BALL BEARING,50mm ID x 80mm OD x 32mm W

50 x 80 x 32

1шт.

2

5162623

CIRCLIP,80mm ID

1шт.

3

5167830

DRIVEN GEAR,45T, 52T

III-IV Speed

1шт.

4

5164929

SNAP RING,1.5mm Thk, Ext

2шт.

5

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

2шт.

6

5164927

SPRING

, Serial Range: -C5486

14шт.

6

87547947

SPRING,Belleville, 60mm ID x 1.9mm Thk

, Start Serial: D5486

14шт.

7

5164926

RING

, Serial Range: -C5486

2шт.

7

87547826

RING,61mm ID x 84.95mm OD x 3mm Thk

, Start Serial: D5486

2шт.

8

5138955

GASKET,134.55mm ID x 142.06mm OD x 3.2mm Thk

2шт.

9

5187977

PISTON

, Serial Range: -C5486

2шт.

9

87547824

PISTON

, Start Serial: D5486

2шт.

10

5162251

CIRCLIP,142.5mm ID

2шт.

11

5167824

DISC,113.5mm ID x 154.35mm OD x 7.5mm Thk

2шт.

12

5167875

KIT

Clutch Plates, Serial Range: -C5603

1шт.

12

87530788

CLUTCH PACK

Clutch Plates, Start Serial: D5603

1шт.

13

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

2шт.

14

5167835

HOUSING

1шт.

15

5165058

KIT

Clutch Plates, Serial Range: -C5603

1шт.

15

87530789

CLUTCH PACK

Clutch Plates, Start Serial: D5603

1шт.

16

5167826

DRIVEN GEAR,50T, 52T, 52T

I-II Speed

1шт.

17

24903820

TAPERED BEARING,45 mm ID x 75 mm OD x 20 mm

45 x 75 x 20

2шт.

18

5167099

SPACER,45.1mm ID x 56mm OD x 24.5mm L

1шт.

19

5150900

BEARING, ROLLER, CYL,45mm ID x 85mm OD x 19mm W

45 x 85 x 19

1шт.

20

14454781

O-RING,0.07" Thk x 1.614" ID, -30, Cl 7, 75 Duro

2шт.

21

83911795

SEAL,Split, 70.76mm ID x 76.2mm OD x 2.13mm Thk

4шт.

22

5187957

MANIFOLD

1шт.

23

5166037

SPRING,Belleville, 45.25mm OD x 4.5mm Thk

1шт.

24

5147930

RING NUT,M45 x 1.5

1шт.

Выбрано товаров: 29
