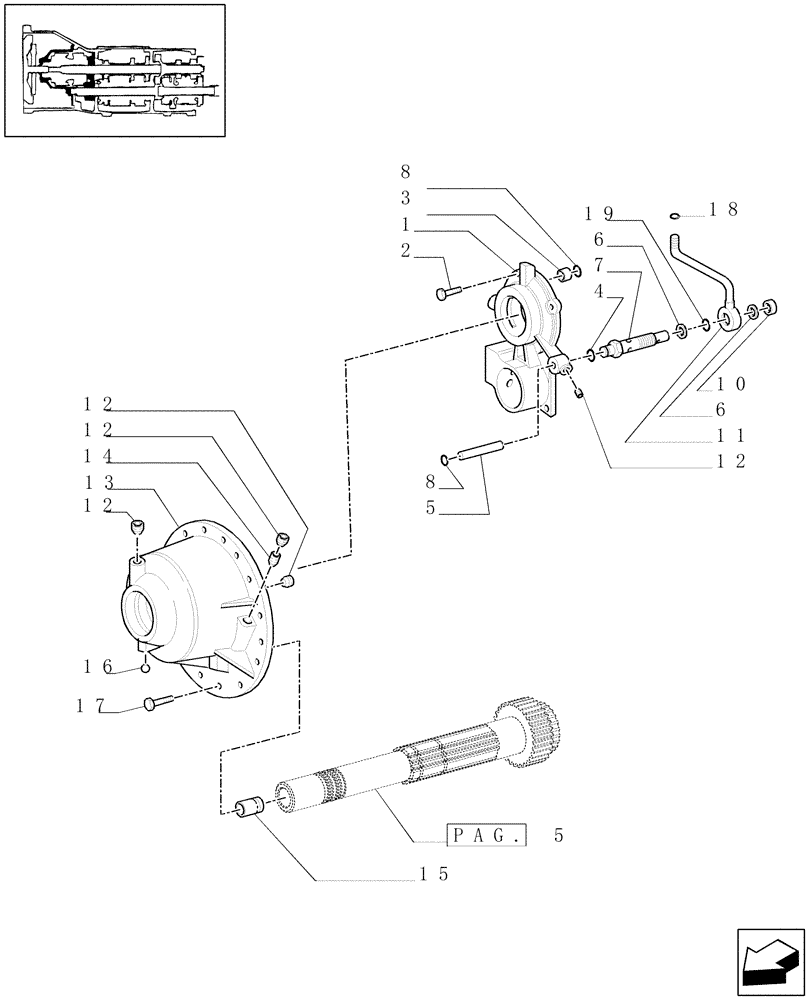

Запчасти Case IH MXM120 (1.28.7/03[01]) - (VAR.281) FULL POWER-SHIFT TRANS. 18X6 (40 KPH-4WD) AND 17X6 (30 KPH) - CLUTCH ENGAGEMENT (03) - TRANSMISSION

1

5179106

MANIFOLD

1шт.

2

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

3

5178778

SPACER,11mm ID x 15mm OD x 15mm L

4шт.

4

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

5

5178212

TUBE,97mm L

1шт.

6

10261860

COPPER WASHER,22.3mm ID x 30mm OD x 1.5mm Thk

2шт.

7

5185573

VALVE PRESSURE RELIE

1шт.

8

14457281

O-RING,0.612" ID x 0.103" Width

6шт.

9

5167066

BUSHING,16.2mm ID x 20mm OD x 11mm L

1шт.

10

5164984

SPACER,22.3mm ID x 30mm OD x 7.5mm L

1шт.

11

5172521

TUBE

1шт.

12

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

M12 x 1.25

9шт.

13

5171865

COVER

1шт.

14

5183149

ORIFICE,M12 x 1.25 x 8mm ID x 20mm L

1шт.

15

5171880

TUBE

1шт.

16

20063460

BALL,7.14mm OD, Gr 100

D = 7.144

1шт.

17

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

10шт.

18

5172342

O-RING,0.139" Thk x 0.609" ID, -208, 70 Duro

3.53 x 15.47

1шт.

19

5185502

PISTON RING,28.5mm ID x 32mm OD x 2.1mm Thk

SEALRING

1шт.
