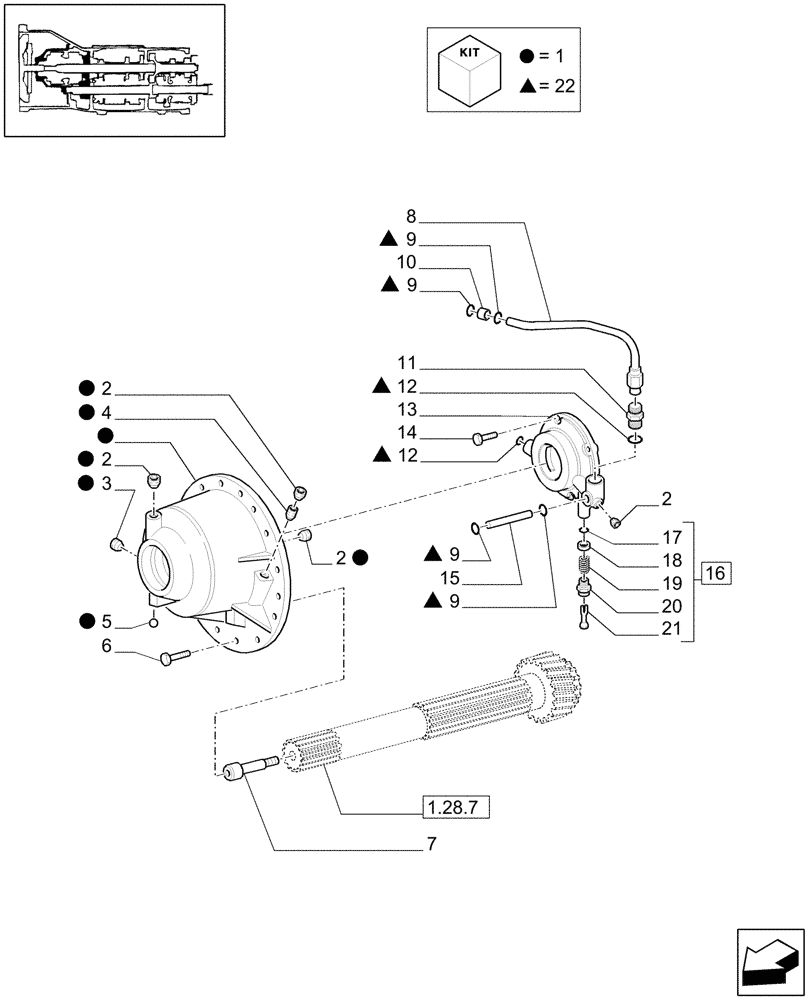

Запчасти Case IH MXM120 (1.28.7/02) - (VAR.272) HI-LO 24X12 (SHUTTLE 40 KM/H) / CLUTCH ENGAGEMENT (03) - TRANSMISSION

1

5164862

COVER

1шт.

2

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

M12 x 1.25

4шт.

3

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

M10 x 1.25

1шт.

4

5167313

PLUG,Hex Skt, M12 x 12mm

M12 x 12

1шт.

5

20063460

BALL,7.14mm OD, Gr 100

D = 7.144

1шт.

6

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

10шт.

7

5170425

TUBE

1шт.

8

5166021

TUBE

1шт.

9

14457281

O-RING,0.612" ID x 0.103" Width

4шт.

10

5167066

BUSHING,16.2mm ID x 20mm OD x 11mm L

1шт.

11

5158803

HYD CONNECTOR,M22 x 1.5 ORB x 7/8" - 14 JIC

1шт.

12

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

13

5166018

COVER

1шт.

14

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

15

5178212

TUBE,97mm L

1шт.

16

5170391

VALVE

1шт.

17

5165486

CIRCLIP,9mm

1шт.

18

5165438

SHIM,9.1mm ID x 13.5mm OD x 2.5mm Thk

1шт.

19

5105968

SPRING

1шт.

20

5165488

HYD CONNECTOR,M18 x 1.5, 9 mm L

1шт.

21

5165484

VALVE

1шт.

22

1930954

SEAL KIT

1шт.
