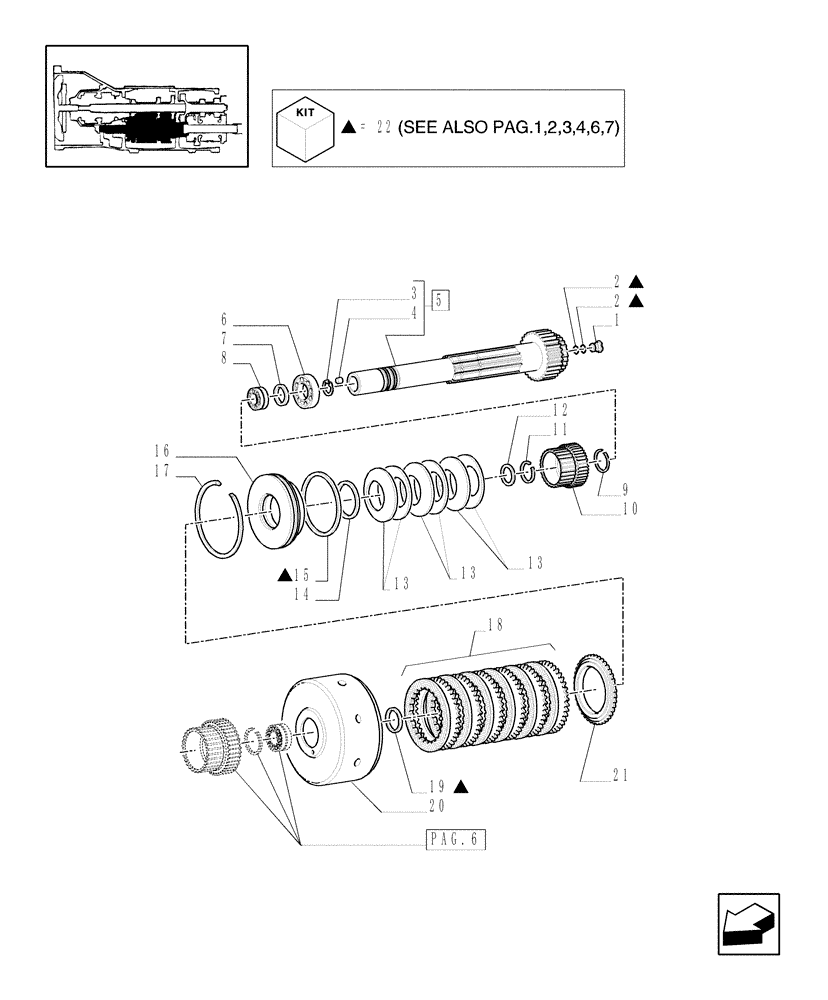

Запчасти Case IH MXM120 (1.28.7[05]) - CLUTCH ENGAGEMENT (03) - TRANSMISSION

1

5166039

SLEEVE,13.75mm ID x 25mm OD x 18mm L

1шт.

2

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

3

11059076

SNAP RING,M32, Int

1шт.

4

5162260

PLUG,Round, 10.5mm OD

3шт.

5

5180808

MAIN SHAFT

1шт.

6

5138418

TAPERED BEARING,50mm ID x 110mm OD x 29.25mm W

50 x 110 x 29.2

1шт.

7

5162261

SPACER,50.1mm ID x 60mm OD x 4mm L

1шт.

8

5162622

BALL BEARING,50mm ID x 80mm OD x 32mm W

50 x 80 x 32

1шт.

9

5162623

CIRCLIP,80mm ID

1шт.

10

47126212

GEAR,39T, 52T

V-VI Speed

1шт.

11

5175981

CIRCLIP,1.5mm Thk

1шт.

12

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

1шт.

13

5164927

SPRING

, Serial Range: -C5486

6шт.

13

87547947

SPRING,Belleville, 60mm ID x 1.9mm Thk

, Start Serial: D5486

6шт.

14

5164926

RING

, Serial Range: -C5486

1шт.

14

87547826

RING,61mm ID x 84.95mm OD x 3mm Thk

, Start Serial: D5486

1шт.

15

5138955

GASKET,134.55mm ID x 142.06mm OD x 3.2mm Thk

1шт.

16

5187977

PISTON

, Serial Range: -C5486

1шт.

16

87547824

PISTON

, Start Serial: D5486

1шт.

17

5162251

CIRCLIP,142.5mm ID

1шт.

18

5167875

KIT

Clutch Plates, Serial Range: -C5603

1шт.

18

87530788

CLUTCH PACK

Clutch Plates, Start Serial: D5603

1шт.

19

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

20

5167836

HOUSING

1шт.

21

5167824

DISC,113.5mm ID x 154.35mm OD x 7.5mm Thk

1шт.

22

1930955

SEAL KIT

Main Clutch Gaskets

1шт.
