Запчасти Case IH MXM120 (1.28.7[02]) - CLUTCH ENGAGEMENT (03) - TRANSMISSION

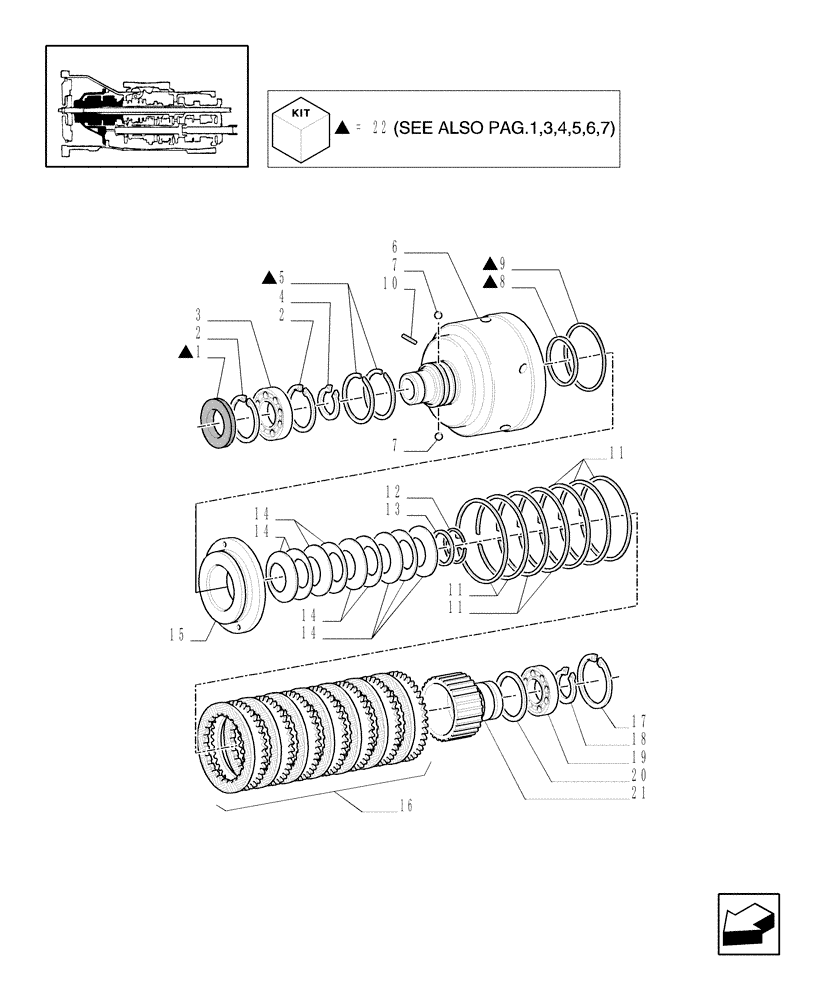

Схема запчастей Case IH MXM120 - (1.28.7[02]) - CLUTCH ENGAGEMENT (03) - TRANSMISSION
21
8
19
22
2
9
11
7
1
22
14
5
11
20
14
3
14
14
7
12
15
10
18
6
11
2
4
22
13
22
17
16
22

Артикул

Название

Примечание

Количество

1

5122845

SEAL,55mm ID x 90mm OD x 10mm Thk

55 x 90 x 10, Serial Range: -C5490

1шт.

1

87566840

GASKET,55mm ID x 90mm OD x 10mm Thk, 2 lip seals

55 x 90 x 10, Start Serial: D5490

1шт.

2

11062476

SNAP RING,M90, Int

2шт.

3

5122846

BALL BEARING,55mm ID x 90mm OD x 18mm W

55 x 90 x 18

1шт.

4

11069576

SNAP RING,M55, Ext

1шт.

5

5131232

OIL SCRAPER RING,Split, 83.02mm ID x 90mm OD x 2.22mm Thk

SEALRING

2шт.

6

5171203

HOUSING

(7.10)

1шт.

7

20063460

BALL,7.14mm OD, Gr 100

D = 7.144

2шт.

8

5162398

SEALING RING,82.55mm ID x 90mm OD x 3.2mm Thk

SEALRING

1шт.

9

5143775

SEAL,128.55mm ID x 136.06mm OD x 3.2mm Thk

135 x 128.5 x 3.2

1шт.

10

14158470

LOCK PIN,M2 x 10, Slotted

1шт.

11

5166536

SPRING,173mm OD x 1.27mm Thk

7шт.

12

5162253

CIRCLIP,2mm Thk

1шт.

13

5162263

RETAINER CUP,68mm ID x 78mm OD x 3mm Thk

1шт.

14

5162331

SPRING

, Serial Range: -C5486

9шт.

14

87547943

SPRING,Belleville, 68mm ID x 1.9mm Thk

, Start Serial: D5496

9шт.

15

5171202

PISTON

1шт.

16

5167863

KIT

Clutch Plates, Serial Range: -C5603

1шт.

16

87530796

CLUTCH PACK

Clutch Plates, Start Serial: D5603

1шт.

17

11062976

SNAP RING,Int, M100 x 3

1шт.

18

11070376

SNAP RING,M70, Ext

1шт.

19

5162399

BALL BEARING,70mm ID x 100mm OD x 16mm W

70 x 100 x 16

1шт.

20

5169098

WASHER,70mm ID x 95mm OD x 1mm Thk

1шт.

21

5162334

HUB,24T Internal / 44T External

1шт.

22

1930955

SEAL KIT

Main Clutch Gaskets

1шт.

Выбрано товаров: 25
