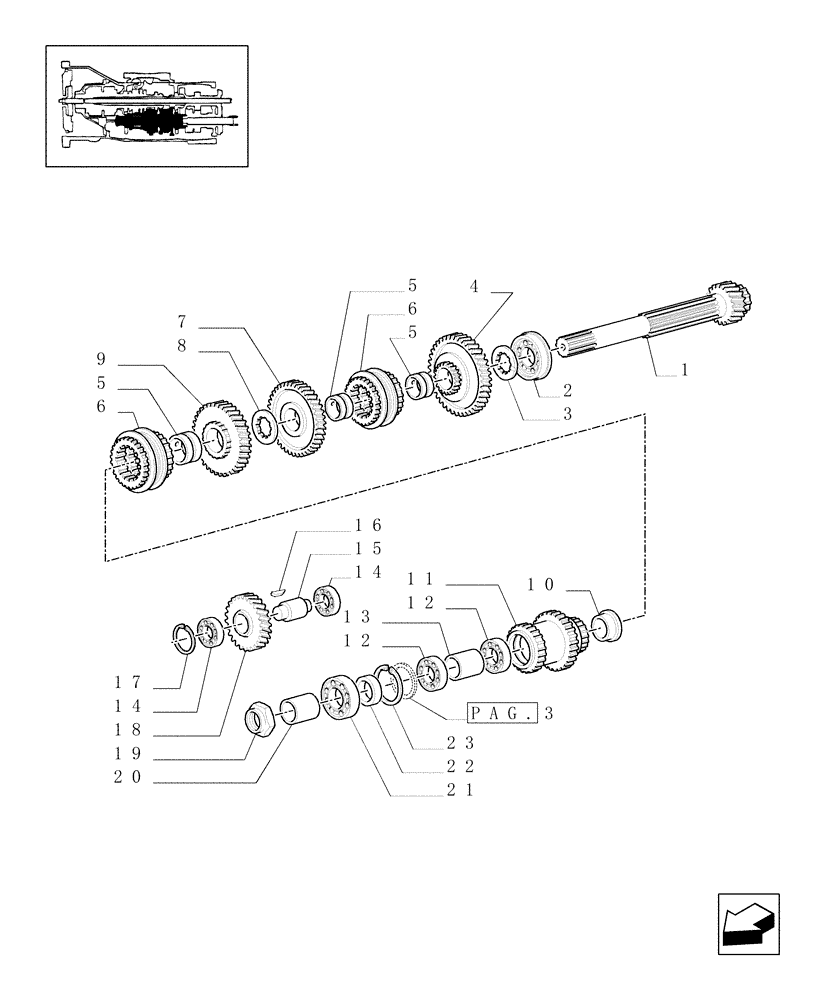

Запчасти Case IH MXM120 (1.28.1/01[02]) - (VAR.272) HI-LO 24X12 (SHUTTLE 40 KM/H) / TRANSMISSION GEARS (03) - TRANSMISSION

1

5180811

SHAFT

1шт.

2

5138418

TAPERED BEARING,50mm ID x 110mm OD x 29.25mm W

50 x 110 x 29.25

1шт.

3

5149127

THRUST WASHER,50.62mm ID x 75mm OD x 7.5mm Thk

1шт.

4

5149249

DRIVEN GEAR

1шт.

5

5149115

BUSHING,49.4mm ID x 60mm OD x 35mm L

3шт.

6

5158933

SYNCHRONIZER

2шт.

7

5149247

DRIVEN GEAR

II Speed

1шт.

8

5149239

THRUST WASHER,46mm ID x 75mm OD x 5mm Thk

1шт.

9

5149248

DRIVEN GEAR

III Speed

1шт.

10

5166678

SPACER,45.1mm ID x 60mm OD x 24.5mm L

1шт.

11

5164789

GEAR

1шт.

12

24903820

TAPERED BEARING,45 mm ID x 75 mm OD x 20 mm

45 x 75 x 20

2шт.

13

5166680

SPACER,45.1mm ID x 55mm OD x 52.5mm L

45.1 x 55 x 52.5

1шт.

14

20715580

BALL BEARING,25 mm ID x 52 mm OD x 15 mm

25 x 52 x 15

2шт.

15

5153564

IDLE SHAFT

1шт.

16

10206320

KEY

1шт.

17

11060576

SNAP RING,M52, Int

1шт.

18

5169966

IDLER GEAR

1шт.

19

5147930

RING NUT,M45 x 1.5

1шт.

20

5153033

SPACER,45.3mm ID x 57mm OD x 39mm L

45.3 x 57 x 39

1шт.

21

80037198

BALL BEARING

45 x 85 x 19

1шт.

22

5149476

SPACER,45.1mm ID x 52mm OD x 13.75mm L

45.2 x 55 x 13.75

1шт.

23

11061676

SNAP RING,M75, Int

1шт.
