Запчасти Case IH MXM120 (1.28.1/01[01]) - (VAR.272) HI-LO 24X12 (SHUTTLE 40 KM/H) / TRANSMISSION GEARS (03) - TRANSMISSION

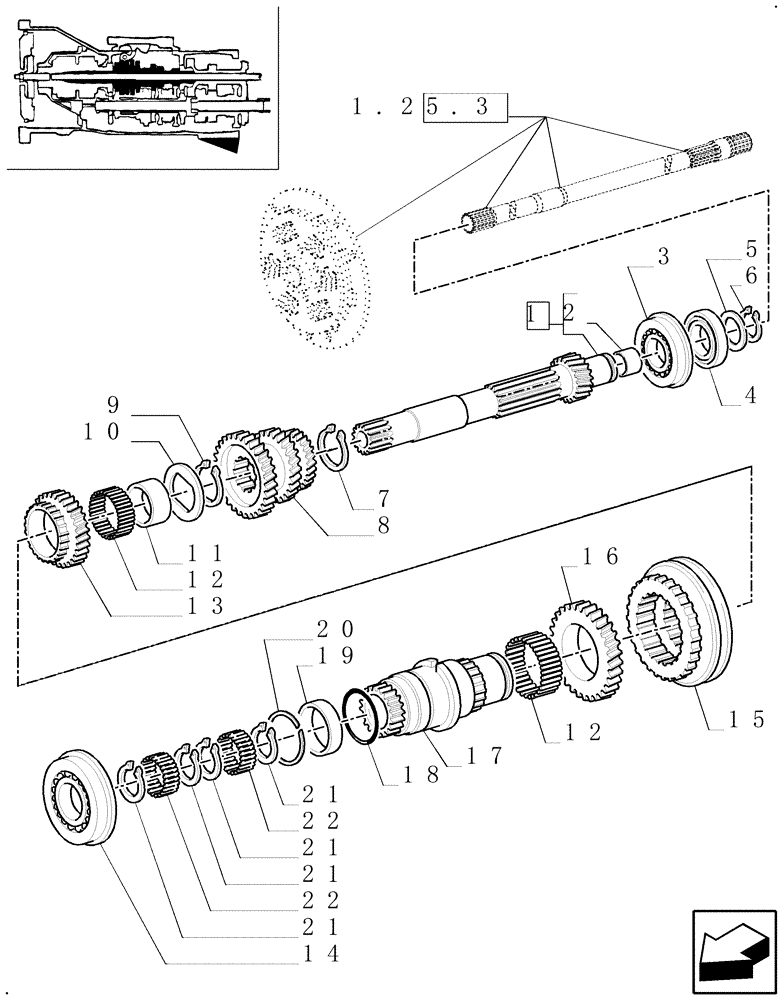

Схема запчастей Case IH MXM120 - (1.28.1/01[01]) - (VAR.272) HI-LO 24X12 (SHUTTLE 40 KM/H) / TRANSMISSION GEARS (03) - TRANSMISSION
15
21
11
22
12
8
18
17
21
4
3
10
2
7
21
22
20
19
9
1
13
14
16
5
6
1.25.3
21
12

Артикул

Название

Примечание

Количество

1

5186003

MAIN SHAFT

1шт.

2

5107725

BUSHING,31.99mm ID x 36mm OD x 25mm L

1шт.

3

5138418

TAPERED BEARING,50mm ID x 110mm OD x 29.25mm W

50 x 110 x 29.25

1шт.

4

86570632

TAPERED BEARING,50mm ID x 90mm OD x 24.75mm W

50 x 90 x 24.75

1шт.

5

5144962

THRUST WASHER,50.1mm ID x 62mm OD x 3mm Thk

1шт.

6

5138419

SNAP RING,M50

D = 50

1шт.

7

5153034

SNAP RING

70 mm, Int

1шт.

8

5185993

DRIVING GEAR

II, III, IV, Speed

1шт.

9

5143130

SNAP RING,M60, Ext x 4mm

1шт.

10

5178313

RING

66.7 x 94 x 5

1шт.

10

5178314

RING

66.7 x 94 x 5.15

1шт.

10

5178315

RING

66.7 x 94 x 5.3

1шт.

11

5149934

BUSHING,66.5mm ID x 75mm OD x 31mm L

1шт.

12

5149885

ROLLER CAGE BEARING,75mm ID x 81mm OD x 30mm W

75 x 81 x 30

1шт.

13

5169927

GEAR

1шт.

14

28996390

BALL BEARING,75mm x 130mm x 25mm

50 x 90 x 24.75

1шт.

15

5189251

SYNCHRONIZER

1шт.

16

5169973

DRIVING GEAR

1шт.

17

5165876

PRIMARY SHAFT

1шт.

18

14455480

O-RING,0.07" Thk x 2.489" ID, -37, Cl 5, 75 Duro

1шт.

19

5169174

RING,50mm ID x 54.5mm OD x 9mm Thk

50 x 54 x 9

1шт.

20

5169996

SEALING RING,51.1mm ID x 55mm OD x 3mm Thk

SEALRING

1шт.

21

5149933

SNAP RING,55mm, 1.5mm Thk, Int

4шт.

22

5149932

ROLLER BEARING,50mm ID x 55mm OD x 30mm W

50 x 55 x 30

2шт.

Выбрано товаров: 24
