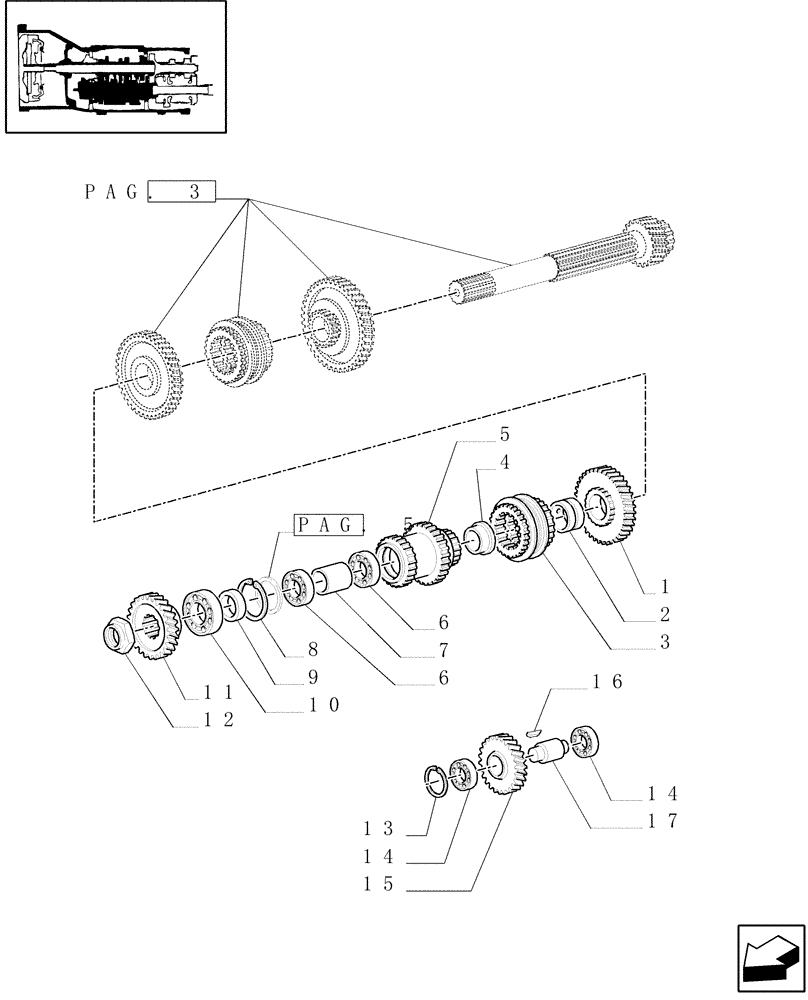

Запчасти Case IH MXM120 (1.28.1[04]) - 20X16 MECHANICAL GEAR BOX (40 KM/H) / TRANSMISSION GEARS (03) - TRANSMISSION

1

5149248

DRIVEN GEAR

III Speed

1шт.

2

5149115

BUSHING,49.4mm ID x 60mm OD x 35mm L

1шт.

3

5158937

SYNCHRONIZER

1шт.

4

5166678

SPACER,45.1mm ID x 60mm OD x 24.5mm L

1шт.

5

5166958

DRIVEN GEAR

Reverser

1шт.

6

24903820

TAPERED BEARING,45 mm ID x 75 mm OD x 20 mm

45 x 75 x 20

2шт.

7

5166680

SPACER,45.1mm ID x 55mm OD x 52.5mm L

1шт.

8

11061676

SNAP RING,M75, Int

1шт.

9

5149476

SPACER,45.1mm ID x 52mm OD x 13.75mm L

1шт.

10

80037198

BALL BEARING

45 x 85 x 19

1шт.

11

5164777

DRIVEN GEAR

V Speed

1шт.

12

5147930

RING NUT,M45 x 1.5

1шт.

13

11060576

SNAP RING,M52, Int

1шт.

14

20715580

BALL BEARING,25 mm ID x 52 mm OD x 15 mm

25 x 52 x 15

2шт.

15

5169966

IDLER GEAR

Reverser

1шт.

16

10206320

KEY

1шт.

17

5153564

IDLE SHAFT

1шт.
