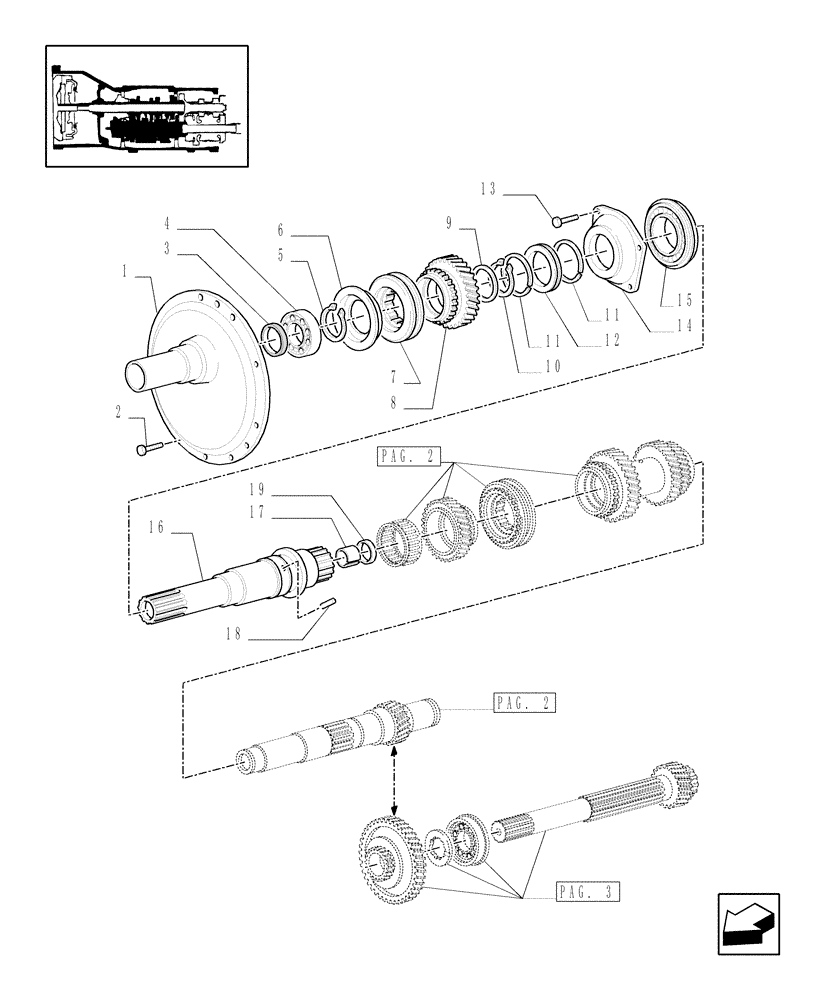

Запчасти Case IH MXM120 (1.28.1[01]) - 20X16 MECHANICAL GEAR BOX (40 KM/H) / TRANSMISSION GEARS (03) - TRANSMISSION

1

5152507

COVER

1шт.

2

16043834

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

10шт.

3

5112307

SEAL,55mm ID x 70mm OD x 8mm Thk

55 x 70 x 8

1шт.

4

28042510

BALL BEARING,55mm x 90mm x 18mm

55 x 90 x 18

1шт.

5

5166953

CIRCLIP

1шт.

6

5167269

RING,Spacing

1шт.

7

5167534

SYNCHRONIZER,36T

V Speed

1шт.

8

5166959

DRIVEN GEAR

V Speed

1шт.

9

5166954

RING,68.2mm ID x 73.5mm OD x 1.2mm Thk

68.2 x 73.5 x 1.2

1шт.

10

5143130

SNAP RING,M60, Ext x 4mm

2шт.

11

5131232

OIL SCRAPER RING,Split, 83.02mm ID x 90mm OD x 2.22mm Thk

SEALRING

2шт.

12

5166957

RING

1шт.

13

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

14

5166968

COVER

1шт.

15

28996390

BALL BEARING,75mm x 130mm x 25mm

75 x 130 x 25

1шт.

16

5166956

MAIN SHAFT

(17.18)

1шт.

17

5107725

BUSHING,31.99mm ID x 36mm OD x 25mm L

1шт.

18

14163470

LOCK PIN,M4 x 10, Slotted

1шт.

19

5112294

SEAL,32mm ID x 42mm OD x 7mm Thk

32 x 42 x 7

1шт.
