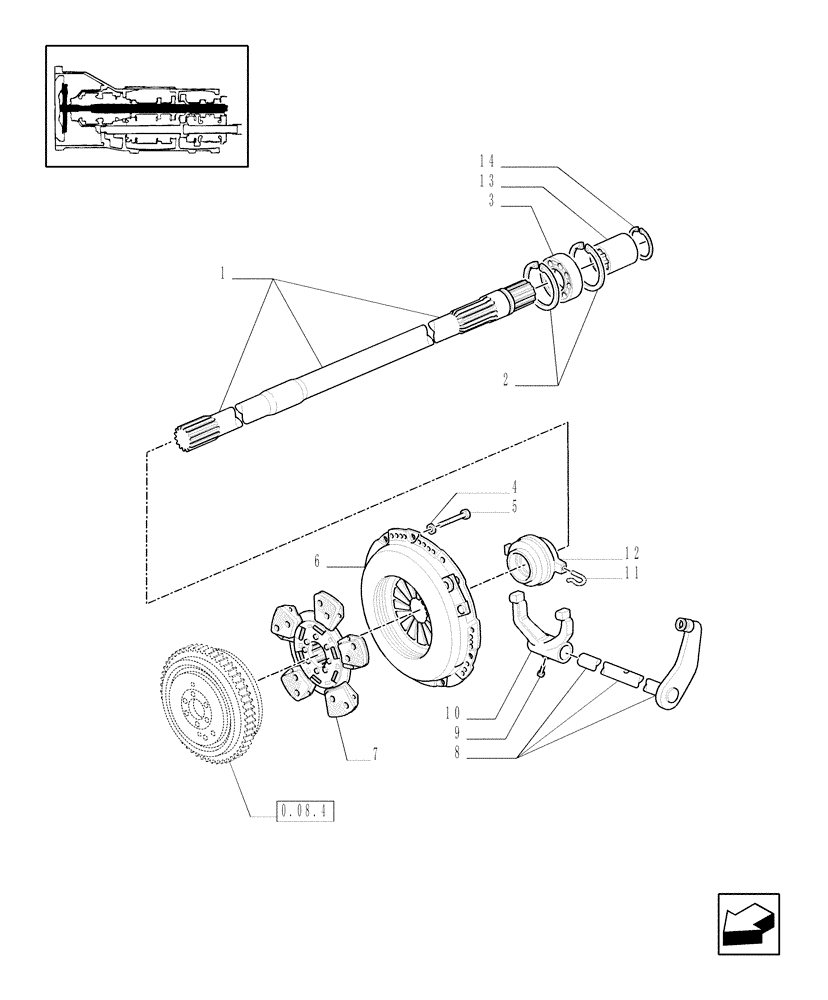

Запчасти Case IH MXM120 (1.25.3) - CLUTCH, PTO WITH 20X16 MECHANICAL GEAR BOX (03) - TRANSMISSION

1

5163231

SHAFT

1шт.

2

11061976

SNAP RING,M80, Int

2шт.

3

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

35 x 80 x 21

1шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

9шт.

5

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

9шт.

6

5177618

CLUTCH

1шт.

6

5177618R

REMAN-CLUTCH PLATE

MXM120, MXM130, MXM140

1шт.

6

5177618C

CORE-CLUTCH PLATE

Return Number

1шт.

7

5165650

CLUTCH PLATE,327mm OD

1шт.

7

5165650R

REMAN-CLUTCH PLATE

Remanufactured, CLUTCH PLATE

1шт.

7

5165650C

CORE-CLUTCH PLATE

Return Number

1шт.

8

5155214

LEVER

1шт.

9

4968813

BOLT,Hex, M16 x 1.5 x 32mm

1шт.

10

5149612

YOKE

1шт.

11

5117289

SPRING

2шт.

12

9967339

SLEEVE

1шт.

Includes bearing and NSS

1шт.

13

5152686

SLEEVE,11T

1шт.

14

11058676

SNAP RING,M28, Int

1шт.
