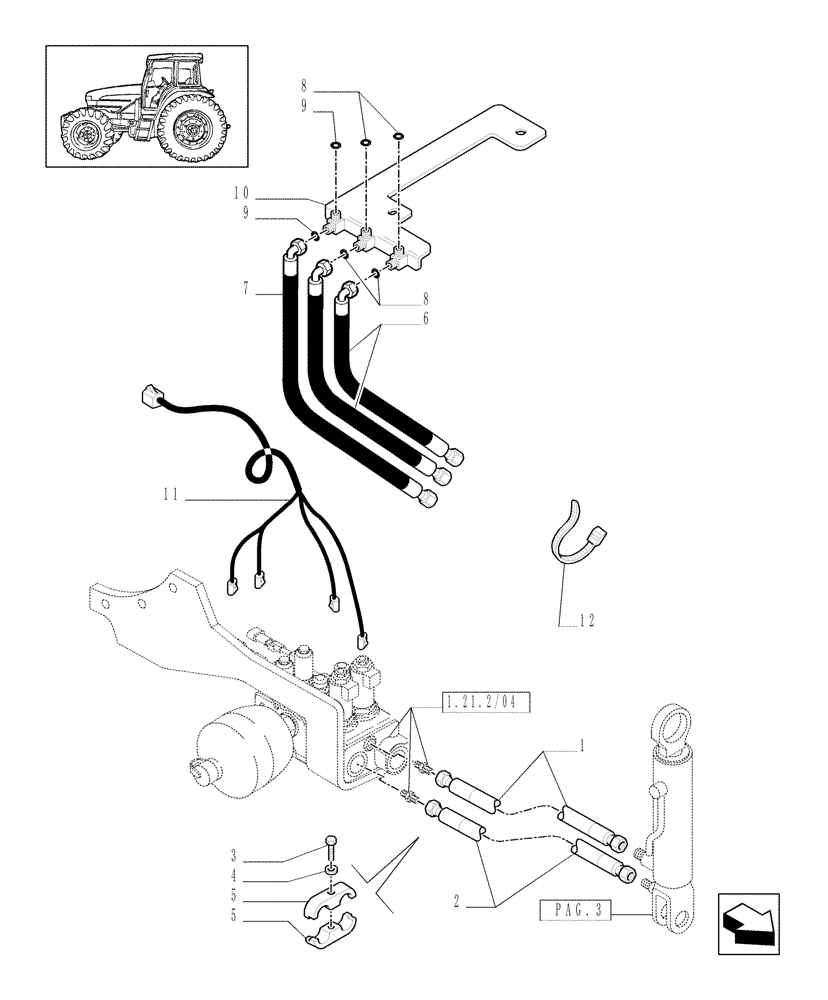

Запчасти Case IH MXM120 (1.21.3/04[04]) - (VAR.519-520) CLASS 4 4WD FRONT AXLE WITH SUSPENSIONS AND "TERRALOCK" - PIPES (03) - TRANSMISSION

1

82030130

FLEXIBLE HOSE

1"-14, 2000 mm, Serial Range: -ACM259775

1шт.

1

87313019

FLEXIBLE HOSE

Lower, Start Serial: ACM259776

1шт.

2

82030129

FLEXIBLE HOSE

13/16"-16, 2000 mm, Serial Range: -ACM259775

1шт.

2

87313016

FLEXIBLE HOSE

Raise, Start Serial: ACM259776

1шт.

3

11107621

BOLT,Hex, M10 x 70mm, Cl 8.8

3шт.

4

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

5

82022172

CLAMP,2 Hoses

6шт.

6

82035337

FLEXIBLE HOSE

13/16"-16, 580 mm

2шт.

7

82020398

FLEXIBLE HOSE

Front Diff. Lock; 11/16-16, 580 mm

1шт.

8

89993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

90 Duro, .364" ID x .070" Thk

4шт.

9

89992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

90 Duro, .489" ID x .070" Thk

2шт.

10

82026192

SUPPORT

Incl. 8, 9

1шт.

11

82019177

WIRE HARNESS

Front Suspension Jump Lead

1шт.

12

81844383

CABLE TIE

CABLE STRAP

1шт.
