Запчасти Case IH MXM120 (1.21.3/04[01]) - (VAR.519-520) CLASS 4 4WD FRONT AXLE WITH SUSPENSIONS AND "TERRALOCK" - SUPPORT FOR FRONT AXLE (03) - TRANSMISSION

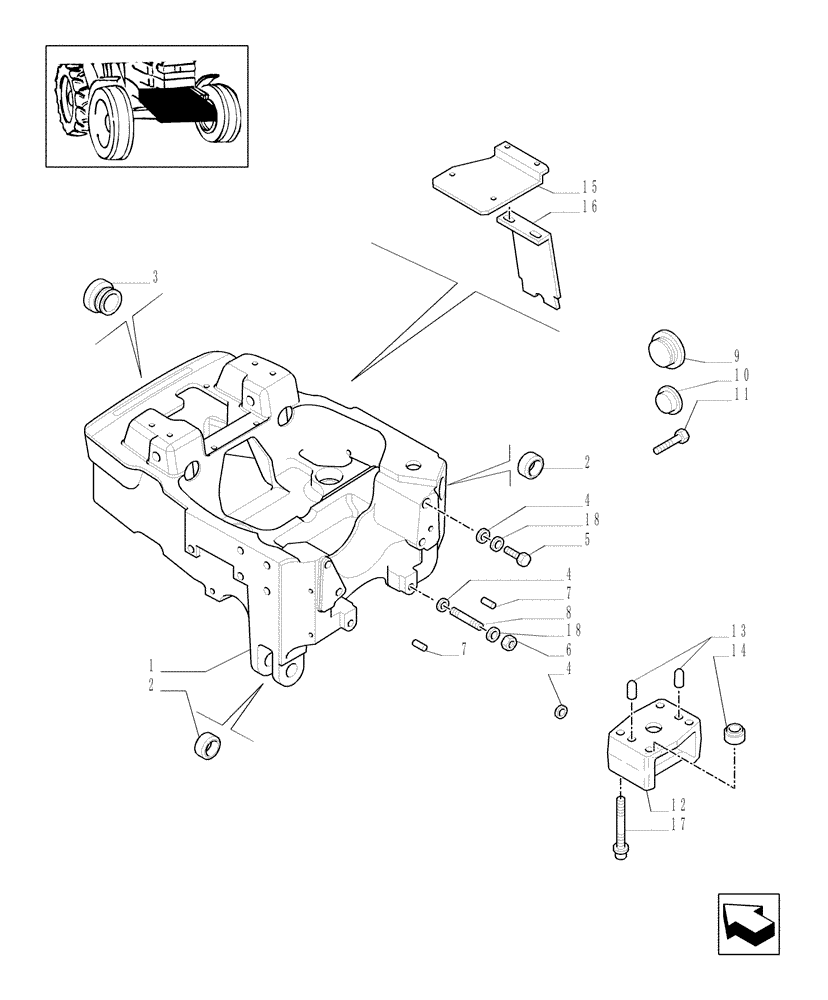

Схема запчастей Case IH MXM120 - (1.21.3/04[01]) - (VAR.519-520) CLASS 4 4WD FRONT AXLE WITH SUSPENSIONS AND "TERRALOCK" - SUPPORT FOR FRONT AXLE (03) - TRANSMISSION
10
7
9
17
8
2
4
13
15
18
11
7
2
6
18
4
12
16
5
3
1
14
4

Артикул

Название

Примечание

Количество

1

82031500

SUPPORT

1шт.

2

82018767

SPACER,34mm ID x 44mm OD x 15.5mm L

34 x 44 x 15.5

2шт.

3

82023395

PLUG,60mm ID

1шт.

4

82026240

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

4

82026241

SHIM,20.2mm ID x 50mm OD x 4.8mm Thk

1шт.

4

82026242

SHIM,20.2mm ID x 50mm OD x 5.1mm Thk

1шт.

4

82026243

SHIM,20.2mm ID x 50mm OD x 5.4mm Thk

1шт.

4

82026244

SHIM,20.2mm ID x 50mm OD x 5.7mm Thk

1шт.

4

82026245

SHIM,20.2mm ID x 50mm OD x 6mm Thk

1шт.

4

82026246

SHIM,20.2mm ID x 50mm OD x 6.3mm Thk

1шт.

4

82026247

SHIM,20.2mm ID x 50mm OD x 6.6mm Thk

1шт.

4

82026248

SHIM,20.2mm ID x 50mm OD x 6.9mm Thk

1шт.

4

82026249

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

4

82026250

SHIM,20mm ID x 50mm OD x 7.5mm Thk

1шт.

4

82026251

SHIM,20.2mm ID x 50mm OD x 7.8mm Thk

1шт.

5

87310864

BOLT,Hex, M20 x 1.5 x 93mm, Gr 12.9

M20 x 1.5 x 93

4шт.

6

82023393

LOCK NUT

M20 x 1.5

2шт.

6

87312644

NUT,Hex, M20, 1.5 Pitch, 16mm High, Gr R12

M20 x 1.5

2шт.

7

82035662

DOWEL,M20 x 52

2шт.

8

87301870

STUD

2шт.

9

82032005

PLUG

50.8 x 25.4

2шт.

10

5175030

PLUG

19 x 34 x 3

4шт.

11

10979224

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

4шт.

12

82030601

SUPPORT

Incl. 13, 14

1шт.

13

82020394

PIN,M18 x 30.00mm

2шт.

14

82020887

BUSHING

1шт.

15

82034530

GUARD

1шт.

16

82023235

GUARD

1шт.

17

82021017

FLANGE BOLT,Self Lkg, Hex, M20 x 2.5 x 150mm, Cl 12.9

M20 x 2 x 150

4шт.

18

82028022

WASHER,M8 x 1.25 ID x 40mm OD x 9mm Thk, CRLC or HRLC Steel

6шт.

Выбрано товаров: 30
