Запчасти Case IH MXM120 (1.21.3[02]) - (VAR.420) 4WD FRONT AXLE WITH SUSPENSIONS AND TERRALOCK - SEMI POWER SHIFT - ARM AND SHOCK-ABSORBE (03) - TRANSMISSION

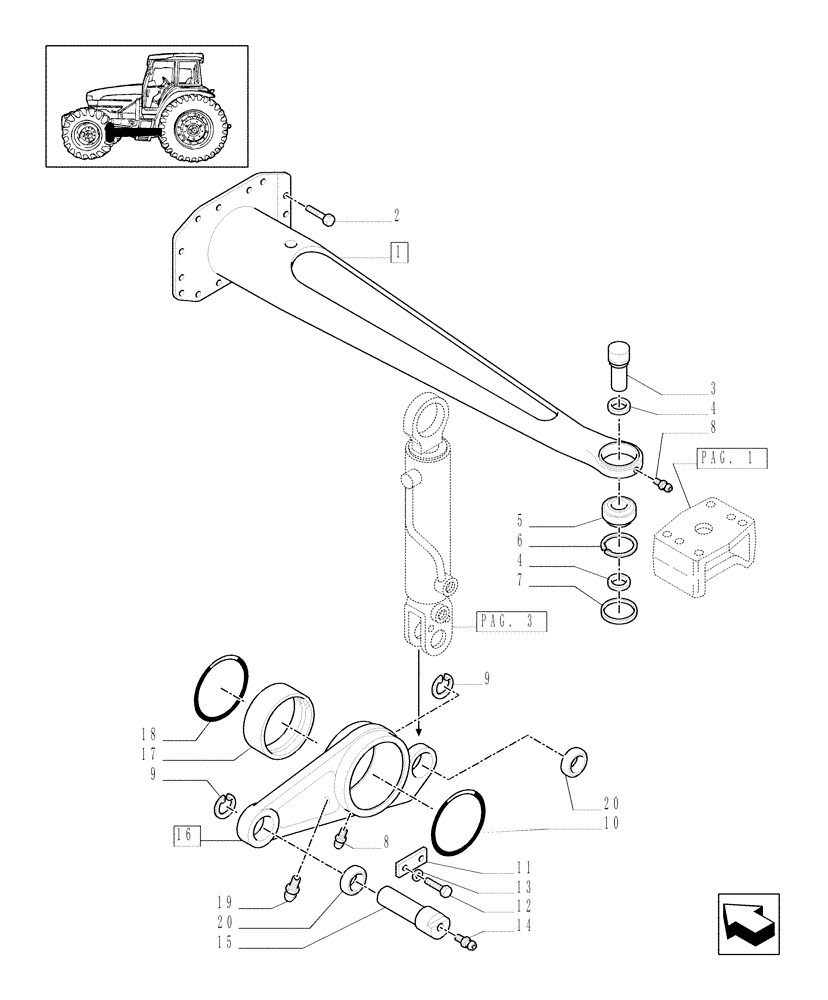

Схема запчастей Case IH MXM120 - (1.21.3[02]) - (VAR.420) 4WD FRONT AXLE WITH SUSPENSIONS AND TERRALOCK - SEMI POWER SHIFT - ARM AND SHOCK-ABSORBE (03) - TRANSMISSION
pag. 1
pag. 3
20
5
12
8
18
4
14
9
4
7
10
13
8
9
2
6
16
11
19
3
1
20
17
15

Артикул

Название

Примечание

Количество

1

82029904

SUPPORTING ARM

Suspension, Incl. 4, 5, 6, 7, 8

1шт.

2

11254134

SCREW,Hex, M16 x 1.5 x 80mm, Cl 10.9

10шт.

2

15835234

BOLT,Hex, M16 x 1.5 x 70mm, Cl 10.9

6шт.

3

5193159

PIN

1шт.

4

5192794

SEAL

62.5/65 x 80 x 5

2шт.

5

5191875

SPHERICAL BEARING,40mm ID x 90mm OD x 56mm W

1шт.

6

11062476

SNAP RING,M90, Int

1шт.

7

5193160

RING,80mm ID x 90mm OD x 6mm Thk

80 x 90 x 6

1шт.

8

13407211

LUBE NIPPLE,M10 x 1

2шт.

9

80370012

SNAP RING

D=62

2шт.

10

14483180

O-RING,0.21" Thk x 7.975" ID, -369, Cl 5, 75 Duro

1шт.

11

82016870

BRACKET

1шт.

12

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

13

85700672

LOCK WASHER,M10

2шт.

14

87414

LUBE NIPPLE,1/4" - 28

1шт.

15

82030090

PIN

1шт.

16

82029901

SUPPORT

Incl. 8, 9, 10, 17, 18, 19, 20

1шт.

17

82020450

BUSHING,200mm ID x 205mm OD x 60mm L

1шт.

18

14483280

O-RING,8.225" ID x 0.210"

1шт.

19

13411117

VALVE PRESSURE RELIE,M10, Black

1шт.

20

82016695

SPHERICAL BEARING,60mm ID x 62mm OD x 35mm W

2шт.

Выбрано товаров: 21
