Запчасти Case IH MXM120 (1.21.2/04) - (VAR.519-520) CLASS 4 4WD FRONT AXLE WITH SUSPENSIONS AND "TERRALOCK" - VALVE AND PIPES (03) - TRANSMISSION

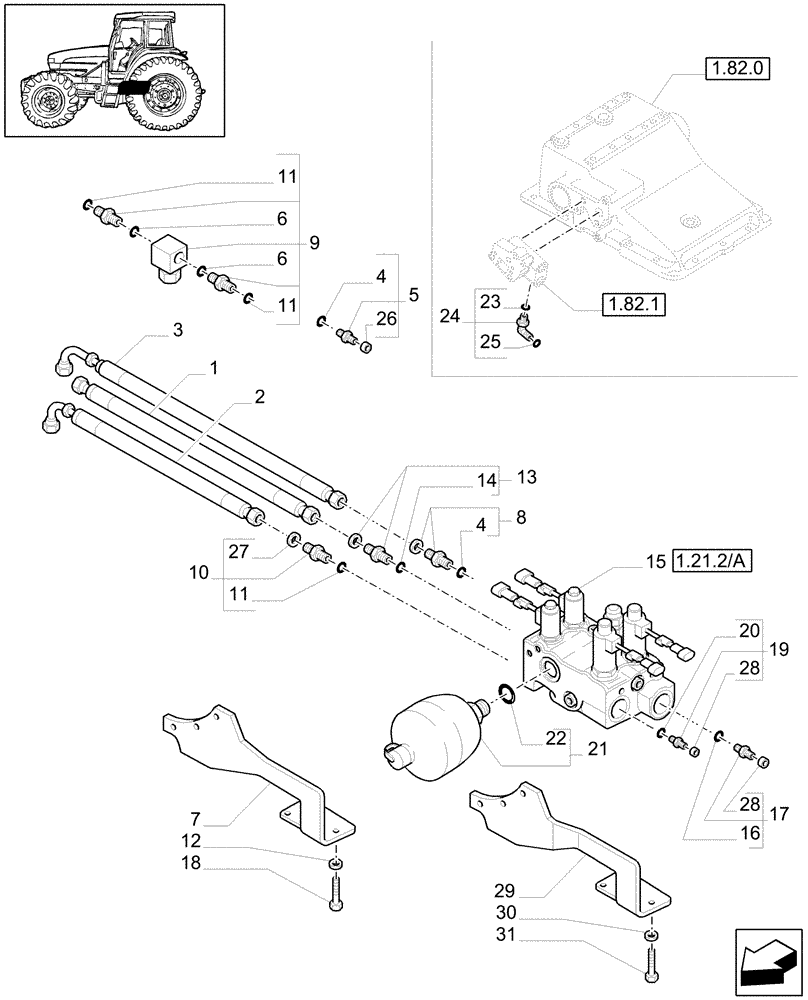

Схема запчастей Case IH MXM120 - (1.21.2/04) - (VAR.519-520) CLASS 4 4WD FRONT AXLE WITH SUSPENSIONS AND "TERRALOCK" - VALVE AND PIPES (03) - TRANSMISSION
4
19
12
14
1.21.2/a
4
29
3
22
27
31
15
11
20
1.82.0
26
1.82.1
30
11
5
16
1
18
10
11
23
21
6
6
7
17
8
28
2
28
25
9
24
13

Артикул

Название

Примечание

Количество

1

82033357

FLEXIBLE HOSE

Trailer Brake Main Pressure; 11/16"-16, 720 mm

1шт.

2

82019096

FLEXIBLE HOSE

Hydraulic Pump-Return; 13/16"-16, 570 mm, Serial Range: -ACM259775

1шт.

2

87312858

FLEXIBLE HOSE

Hydraulic Pump-Return; 13/16"-16, 570 mm, Start Serial: ACM259776

1шт.

3

82019094

FLEXIBLE HOSE

Hydraulic Pump-Load Sense; 9/16"-18, 635 mm, Serial Range: -ACM259775

1шт.

3

87312857

FLEXIBLE HOSE

Hydraulic Pump-Load Sense; 9/16"-18, 635 mm, Start Serial: ACM259776

1шт.

4

89992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

90 Duro, .489" ID x .070" Thk

2шт.

5

82016497

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5

1шт.

6

80165202

O-RING

90 Duro, .351" ID x .072" Thk

2шт.

7

82030647

BRACKET

, Serial Range: -C5349

1шт.

8

82019684

HYD CONNECTOR,13/16-16 ORFS x M16 x 1.5 ORB

13/16"-16; M16 x 1.5

1шт.

9

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

1шт.

10

82016839

HYD CONNECTOR,Straight, M10 x 1 ORFS, 9/16"-18" ORB

9/16"-18; M10 x 1

1шт.

11

89825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

90 Duro, .301" ID x .070" Thk

3шт.

12

12605671

LOCK WASHER,Int Tooth, M10

, Serial Range: -C5349

3шт.

13

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

11/16"-16; M14 x 1.5

1шт.

14

89993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

90 Duro, .364" ID x .070" Thk

1шт.

15

47135723

HYDRAULIC VALVE

Suspension Control

1шт.

47135723R

REMAN-HYD VALVE

MXM130,MXM140,MXM120 ALL (6/02-)

1шт.

47135723C

CORE-VALVE HYD

Return Number

1шт.

16

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

17

47125482

HYD CONNECTOR

1"-14; M27 x 2

1шт.

18

16054721

BOLT,Hex, M10 x 1.25 x 40mm, Cl 8.8, Full Thd

, Serial Range: -C5349

3шт.

19

82019639

HYD CONNECTOR

13/16"-12; M27 x 2

1шт.

20

89991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

90 Duro, .739" ID x .070" Thk

1шт.

21

82025705

ACCUMULATOR

1шт.

22

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

23

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

24

82015686

ELBOW,M16 x 1.5 x 37.5mm

M16 x 1.5, 11/16"-16

1шт.

25

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

26

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

27

82016610

SEAL,8.4mm ID x 11.9mm OD x 1mm Thk

1шт.

28

82019813

SEAL,23.9mm ID x 29.2mm OD x 1.5mm Thk

2шт.

29

87532941

BRACKET

, Start Serial: D5349

1шт.

30

10615779

LOCK WASHER,Ext Tooth, M10

, Start Serial: D5349

3шт.

31

16054724

BOLT,Hex, M10 x 1.25 x 40mm, Cl 8.8, Full Thd

, Start Serial: D5349

3шт.

Выбрано товаров: 35
