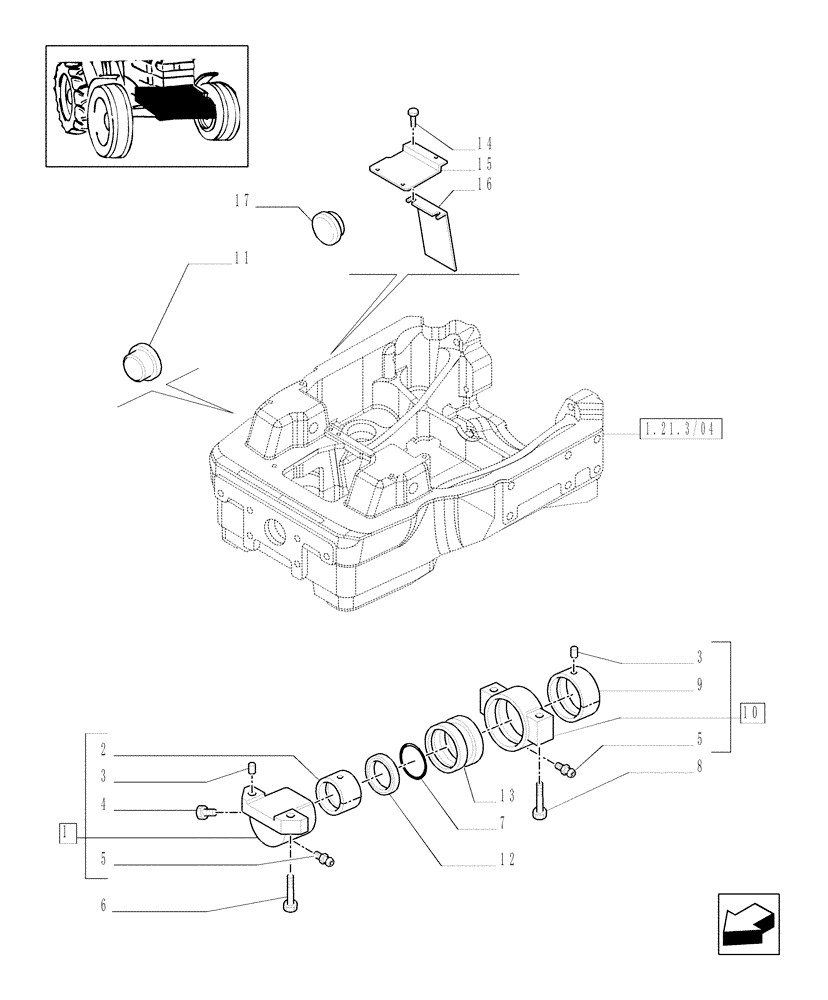

Запчасти Case IH MXM120 (1.21.1/11) - (VAR.519-520) CLASS 4 4WD FRONT AXLE WITH SUSPENSIONS AND "TERRALOCK" - SUPPORT (03) - TRANSMISSION

1

5140890

SUPPORT

1шт.

2

5140889

BUSHING,62.8mm ID x 68.19mm OD x 55mm L

1шт.

3

10837710

DOWEL,M10 x 25

4шт.

4

13410917

VALVE PRESSURE RELIE

1шт.

5

13407211

LUBE NIPPLE,M10 x 1

2шт.

6

14272031

BOLT,Hex, M18 x 1.5 x 65mm

M18 x 1.5 x 65

2шт.

7

14471680

O-RING,0.21" Thk x 2.475" ID, -333, Cl 5, 75 Duro

(M62.86 ID x 5.33 Thk)

1шт.

8

14272534

LOCK BOLT,Hex, M18 x 1.5 x 100mm, Cl 10.9

2шт.

9

5140589

BUSHING,115.64mm ID x 120.19mm OD x 52mm L

1шт.

10

5148528

SUPPORT

1шт.

11

82013380

CAP COVER

4шт.

12

5140888

RING

1шт.

13

5188607

SEAL,115.5mm ID x 130mm OD x 7.5mm Thk

2шт.

14

10979224

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

4шт.

15

82034530

GUARD

1шт.

16

82023235

GUARD

1шт.

17

5175030

PLUG

31.5 x 10

4шт.

17

82032005

PLUG

50.8 x 25.4

2шт.
