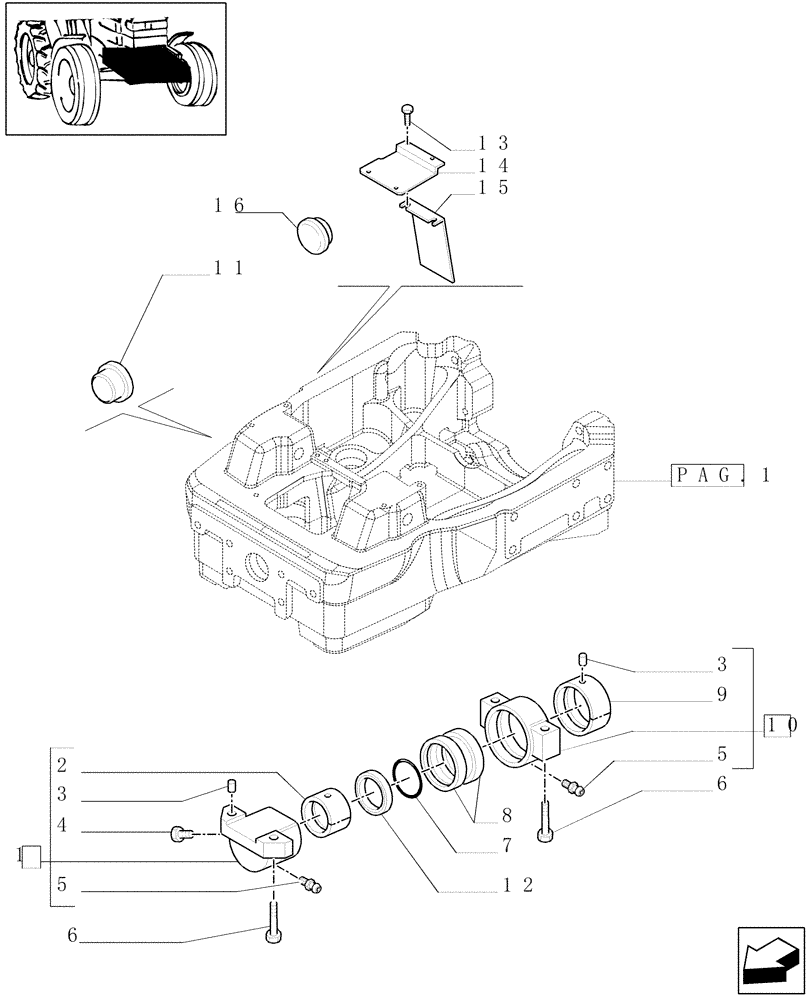

Запчасти Case IH MXM120 (1.21.1/01[02]) - SUPPORT FOR 4WD FRONT AXLE (03) - TRANSMISSION

1

5146124

SUPPORT

1шт.

2

5101112

BUSHING,52.72mm ID x 57.16mm OD x 42mm L

52 x 57 x 42

1шт.

3

10837710

DOWEL,M10 x 25

4шт.

4

13411117

VALVE PRESSURE RELIE,M10, Black

1шт.

5

13407211

LUBE NIPPLE,M10 x 1

2шт.

6

14272031

BOLT,Hex, M18 x 1.5 x 65mm

M18 x 1.5 x 65

4шт.

7

14471380

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

1шт.

8

5188609

SEALING RING,99.04mm ID x 115mm OD x 7.5mm Thk

2шт.

9

5129385

BUSHING,99.15mm ID x 103.7mm OD x 52mm L

1шт.

10

5147613

SUPPORT

1шт.

11

82013380

CAP COVER

4шт.

12

5140888

RING

1шт.

13

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

14

5175024

GUARD

1шт.

15

5169749

GUARD

1шт.

16

5175030

PLUG

31.5 x 10

4шт.

16

82032005

PLUG

50.8 x 25.4

2шт.
