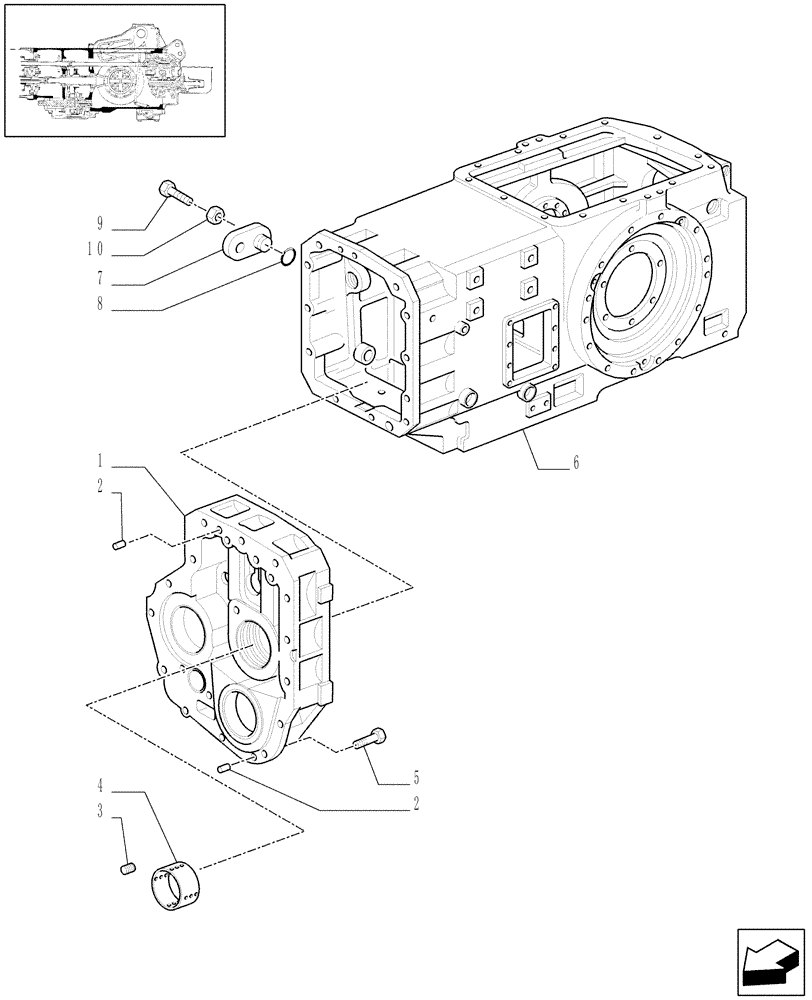

Запчасти Case IH MXM120 (1.21.0/04[03]) - (VAR.281) FULL POWER-SHIFT TRANS. 18X6 (40 KPH-4WD) AND 17X6 (30 KPH) - HOUSING , GEARS (03) - TRANSMISSION

1

5183810

SPACER

1шт.

2

4985062

DOWEL,15mm OD x 25mm L

M15 x 25

2шт.

3

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

M12 x 1.25

1шт.

4

5189018

BUSHING,90.02mm ID x 100.05mm OD x 52.5mm L

90.020/90.050 x 100.050/100.065 x 52.5

1шт.

5

11422030

BOLT,Hex, M14 x 1.5 x 55, 10.9

14шт.

6

47125362

HOUSING

Central

1шт.

7

5167843

PLUG

1шт.

8

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

9

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

10

10615474

LOCK WASHER,Ext Tooth, M6 x 11 x 0.7 Thk

1шт.
