Запчасти Case IH MXM120 (1.21.0/04[02]) - (VAR.281) FULL POWER-SHIFT TRANS. 18X6 (40 KPH-4WD) AND 17X6 (30 KPH) - HOUSING , GEARS (03) - TRANSMISSION

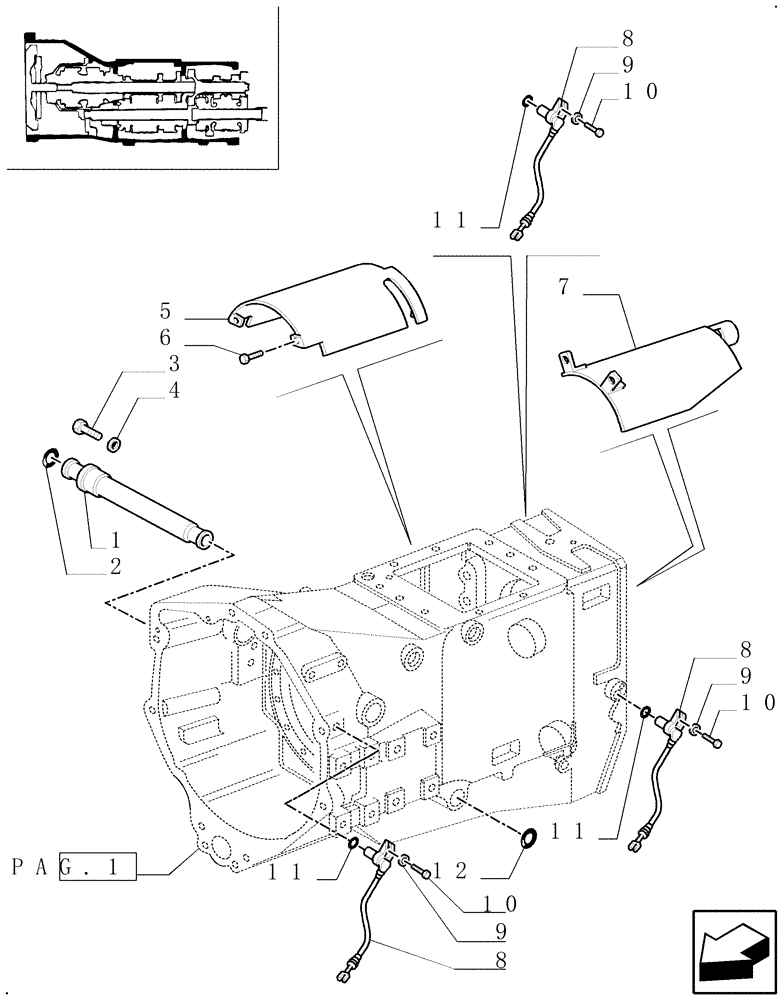

Схема запчастей Case IH MXM120 - (1.21.0/04[02]) - (VAR.281) FULL POWER-SHIFT TRANS. 18X6 (40 KPH-4WD) AND 17X6 (30 KPH) - HOUSING , GEARS (03) - TRANSMISSION
3
1
9
12
9
10
8
11
pag.1
8
8
11
10
11
4
10
9
6
2
5
7

Артикул

Название

Примечание

Количество

1

5172331

TUBE

1шт.

2

14464681

O-RING,56.74mm ID x 2.512" OD x 3.53mm

1шт.

3

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

4

12646204

WASHER,8.15mm ID x 35mm OD x 3mm Thk

1шт.

5

5179239

GUARD

1шт.

6

14305624

HEX SOC SCREW,M6 x 35mm, Cl 8.8

4шт.

7

5185307

GUARD

1шт.

8

84169162

SENSOR

Speed, Hall Effect, High Sens

3шт.

9

10615474

LOCK WASHER,Ext Tooth, M6 x 11 x 0.7 Thk

3шт.

10

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

3шт.

11

47136259

O-RING,3mm Thk x 17.2mm ID, 72 Duro

3 x 17.2

3шт.

11

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

3шт.

12

14464580

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

1шт.

Выбрано товаров: 13
